Merida ONE-SIXTY 800 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,57 kg
Front travel
170mm
Rear travel
160mm

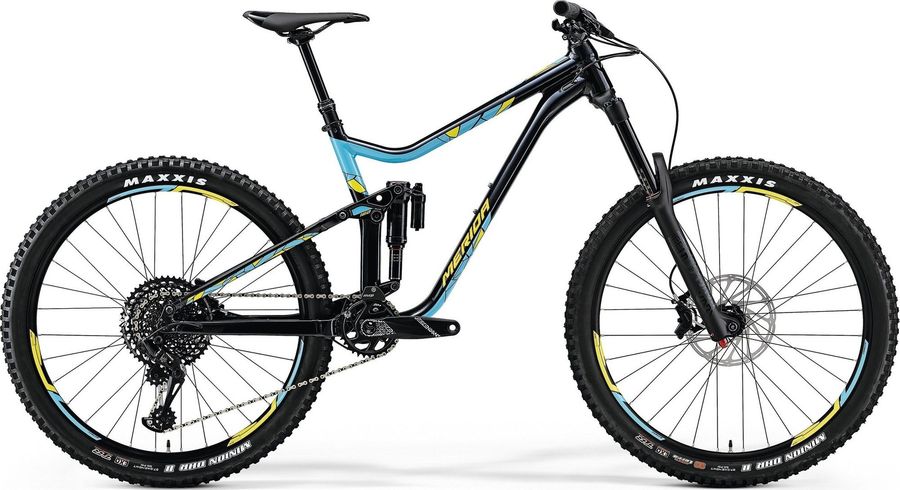

Merida ONE-SIXTY 800 2018

About the Merida ONE-SIXTY 800 2018

The Merida ONE-SIXTY 800 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,57 kg.

Features

The Merida ONE-SIXTY 800 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert TR, 3d forged 6061 aluminium, 35mm long, oversize clamp
Saddle
Prologo Nago X20
Headset
FSA NO.57/55E
Seatpost
K-Shock LEV Integra dropper 30.9mm
Handlebar
MERIDA Expert TR double butted 6061 aluminium, 20mm rise, 760mm wide
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant 6K Eagle 32 teeth with MRP 1x TR upper chainguard
Shifter
SRAM GX Eagle trigger, 12 speed with SRAM MMX clamp
Chain guide
MRP 1x TR upper
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ONE-SIXTY LITE
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA Expert TR, 29mm inner width tubeless ready
Tires
Maxxis Minion DHR II TR EXO 3C 2.4" front and Maxxis Minion DHR II TR EXO Dual 2.4" rear
Spokes
Double Butted Black stainless
Rear hub
Boost standard, Sealed bearing 15mm front and 12mm rear bolt through axles.
Front hub
Boost standard, Sealed bearing 15mm front and 12mm rear bolt through axles.

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
490,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
559,0
591,0
630,0
648,0
d
Head tube length
105,0
110,0
125,0
130,0
e
Head tube angle
65,3º
65,3º
65,3º
65,3º
f
Rake
42,0
42,0
36,0
42,0
g
Trail
117,0
117,0
124,0
117,0
h
Wheelbase
1157,0
1189,0
1223,0
1247,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
595,0
599,0
613,0
617,0
l
Reach
410,0
440,0
474,0
490,0
m
Standover height
713,0
734,0
757,0
765,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
727,0
759,0
793,0
817,0
