Merida ONE-SIXTY 8000 2018

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
170mm
Rear travel
160mm

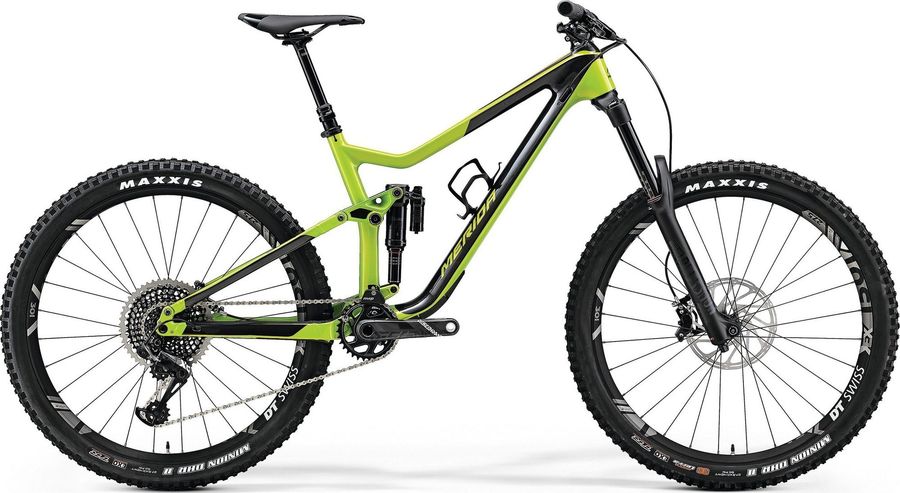

Merida ONE-SIXTY 8000 2018

About the Merida ONE-SIXTY 8000 2018

The Merida ONE-SIXTY 8000 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,9 kg.

Features

The Merida ONE-SIXTY 8000 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert TR, 3d forged 6061 aluminium, 35mm long, oversize clamp
Saddle
Prologo Nago X20
Headset
FSA NO.57/55E
Seatpost
Rock Shox Reverb Stealth dropper, 30.9mm
Handlebar
MERIDA Expert TR double butted 6061 aluminium, 20mm rise, 760mm wide
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant carbon Eagle 32 teeth with MRP 1x TR upper chainguard
Shifter
SRAM X01 Eagle 12 speed trigger with SRAM MMC clamp
Chain guide
MRP 1x TR upper
Cassette
SRAM X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
ONE-SIXTY CFA
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
DT Swiss Spline EX 1501 ONE 30 wheelset, Boost standard, 15mm front, 12mm rear bolt through axles
Tires
Maxxis Minion DHR II TR EXO 3C 2.4" front and Maxxis Minion DHR II TR EXO Dual 2.4" rear
Spokes
DT Competition straight pull
Rear hub
DT Swiss Spline EX 1501 ONE 30, Boost
Front hub
DT Swiss Spline EX 1501 ONE 30, Boost

Geometry

Size SM MD LG
a
Seat tube length
400,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
563,0
597,0
632,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,3º
65,3º
65,3º
f
Rake
47,0
48,0
48,0
g
Trail
112,0
111,0
111,0
h
Wheelbase
1166,0
1201,0
1237,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
k
Stack height
592,0
601,0
614,0
l
Reach
415,0
445,0
475,0
m
Standover height
717,0
736,0
766,0
x
Bottom bracket height
349,0
349,0
349,0
y
Front center
736,0
771,0
807,0
