Merida ONE-SIXTY M#RIDA 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,71 kg
Front travel
170mm
Rear travel
165mm

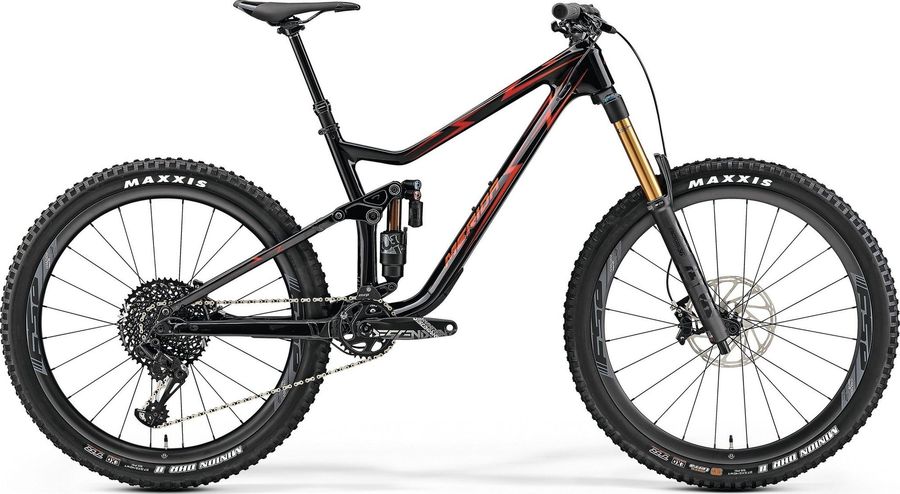

Merida ONE-SIXTY M#RIDA 2019

About the Merida ONE-SIXTY M#RIDA 2019

The Merida ONE-SIXTY M#RIDA 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,71 kg.

Features

The Merida ONE-SIXTY M#RIDA 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
None included
Components
Steam
Merida Expert TR, 35mm diameter, 0° stem angle, 40mm length
Saddle
Prologo Nago X20
Headset
FSA NO.57/55E neck, 2191025712
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant 7K Eagle, 32 teeth
Shifter
no / SRAM GX Eagle
Chain guide
MRP 1X V3
Bottom bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ONE-SIXTY CFA
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
FSA Gradient LTD, 110x15mm width front hub, 148x12mm width rear hub, 27.5mm inner width, 6 bolt, SRAM XD
Tires
Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO 3C / Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO Dual
Spokes
attached
Rear hub
attached
Front hub
attached

Geometry

Size SM MD LG
a
Seat tube length
400,0
430,0
470,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
563,0
597,0
632,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,3º
65,3º
65,3º
f
Rake
47,0
48,0
48,0
g
Trail
112,0
111,0
111,0
h
Wheelbase
1166,0
1201,0
1237,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
k
Stack height
592,0
601,0
614,0
l
Reach
415,0
445,0
475,0
m
Standover height
717,0
736,0
766,0
x
Bottom bracket height
349,0
349,0
349,0
y
Front center
736,0
771,0
807,0
