BikeWise

Merida One-Twenty 27.5" 8000 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,9 kg
Front travel
130mm
Rear travel
120mm
Merida One-Twenty 27.5" 8000 2018

About the Merida One-Twenty 27.5" 8000 2018

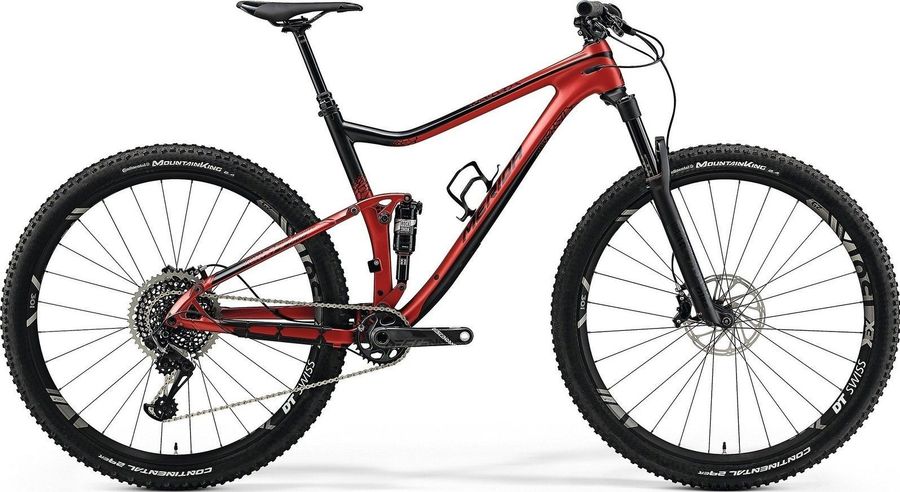

The Merida One-Twenty 27.5" 8000 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,9 kg.

Features

The Merida One-Twenty 27.5" 8000 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert TR, 3d forged 6061 aluminium, oversize clamp
Saddle
Prologo Nago X20
Headset
Merida M2339
Seatpost
RockShox Reverb Stealth
Handlebar
Merida Expert TR, double butted 6061 aluminium, 35mm rise, 760mm wide
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant Eagle, carbon
Shifter
SRAM X01 Eagle, trigger, 12-speed with SRAM MMX clamp
Cassette
SRAM X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss Spline EX 1501 ONE 30
Tires
Continental Mountain King II ProTection, 2.4"
Spokes
DT Competition, straightpull
Rear hub
DT Swiss Spline EX 1501 ONE 30, Boost
Front hub
DT Swiss Spline EX 1501 ONE 30, Boost

Geometry

Size SM MD LG
a
Seat tube length
415,0
450,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
573,0
593,0
618,0
d
Head tube length
105,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
40,0
40,0
39,0
g
Trail
100,0
100,0
102,0
h
Wheelbase
1120,0
1140,0
1165,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
587,0
591,0
601,0
l
Reach
410,0
428,0
450,0
m
Standover height
708,0
730,0
754,0
x
Bottom bracket height
330,0
330,0
330,0
y
Front center
683,0
703,0
728,0
