BikeWise

Merida One-Twenty 29" 400 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
120mm
Rear travel
120mm

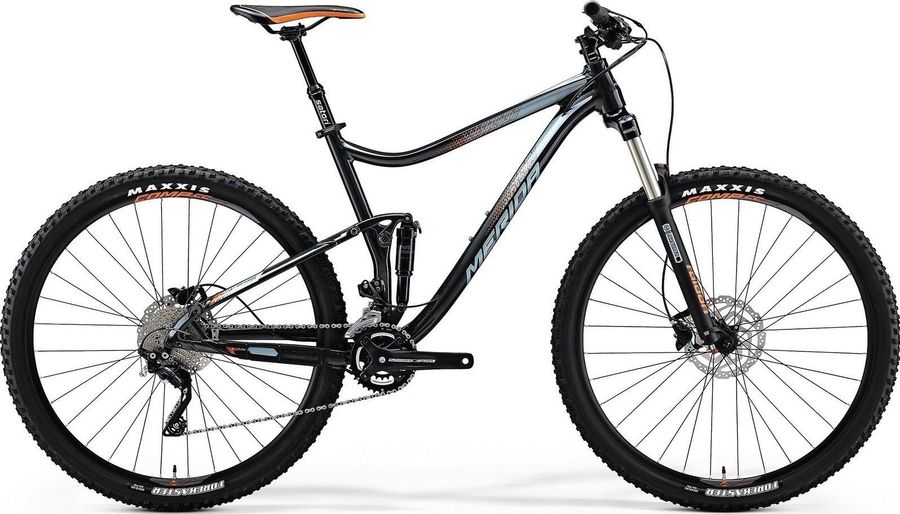

Merida One-Twenty 29" 400 2018

About the Merida One-Twenty 29" 400 2018

The Merida One-Twenty 29" 400 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include dropper seatpost, e-thru axle, and hydraulic disc brakes. The bike weighs approximately 14,5 kg.

Features

The Merida One-Twenty 29" 400 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert, 3d forged 6061 aluminium, oversize clamp, +/- 7° rise
Saddle
Merida Sport
Headset
FSA No.57/61BP
Seatpost
Satori Dropper
Handlebar
Merida Expert CC, 740mm wide, 10mm rise
Brake lever
Shimano M315
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Alpha Drive
Shifter
Shimano Deore, rapid fire, 20-speed
Front derailleur
Shimano Deore
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminum
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour Raidon XC-LO-R
Wheels
Rims
Merida Big.Nine Comp CC
Tires
Maxxis Forekaster, folding, 2.35"
Spokes
Black stainless
Rear hub
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock
Front hub
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock

Geometry

Size MD LG XL
a
Seat tube length
450,0
500,0
550,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
594,0
617,0
641,0
d
Head tube length
95,0
105,0
115,0
e
Head tube angle
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
g
Trail
94,0
94,0
94,0
h
Wheelbase
1143,0
1166,0
1190,0
i
Chainstay length
444,0
444,0
444,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
614,0
623,0
632,0
l
Reach
430,0
449,0
470,0
m
Standover height
739,0
767,0
795,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
702,0
725,0
749,0
