Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
130mm
Rear travel
120mm

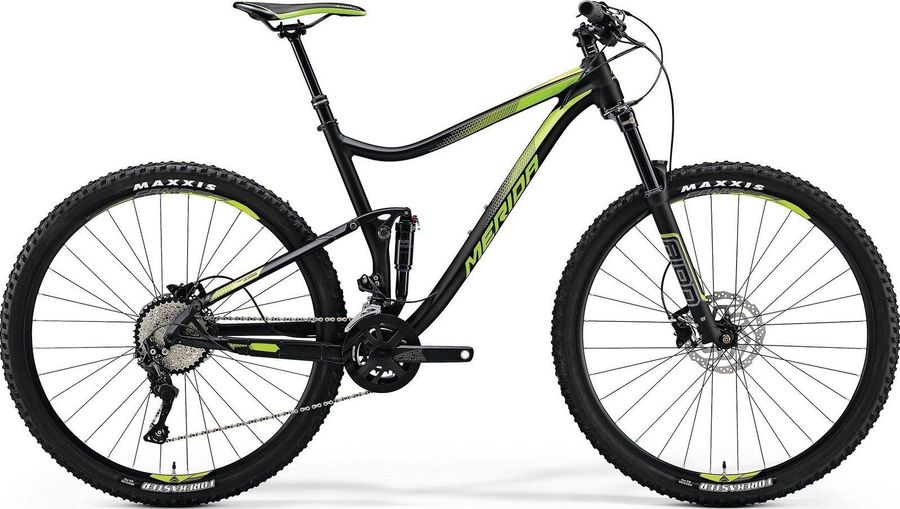

About the Merida One-Twenty 29" 500 2018
The Merida One-Twenty 29" 500 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include dropper seatpost, e-thru axle, and hydraulic disc brakes. The bike weighs approximately 14,4 kg.
Features
Dropper seatpost
More info
Dropper seatpost
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Pedals
|
None included
|
|---|
|
Steam
|
Merida Expert, 3d forged 6061 aluminium, oversize clamp, +/- 6° rise
|
|---|---|
|
Saddle
|
Merida Sport
|
|
Headset
|
FSA No.57/61BP
|
|
Seatpost
|
Merida Expert Dropper
|
|
Handlebar
|
Merida Expert CC, 740mm wide, 10mm rise
|
|
Brake lever
|
Shimano M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA Gamma Drive
|
|---|---|
|
Shifter
|
Shimano Deore, rapid fire, 20-speed
|
|
Front derailleur
|
Shimano Deore
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
SR Suntour Unair LOR8
|
|
Front suspension
|
SR Suntour Aion 35
|
|
Rims
|
Merida Big.Nine Comp CC
|
|---|---|
|
Tires
|
Maxxis Forekaster, folding, 2.35"
|
|
Spokes
|
Black stainless
|
|
Rear hub
|
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock
|
|
Front hub
|
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock
|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
450,0
|
500,0
|
550,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
594,0
|
617,0
|
641,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
94,0
|
94,0
|
94,0
|
|
h
Wheelbase
|
1143,0
|
1166,0
|
1190,0
|
|
i
Chainstay length
|
444,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
40,0
|
40,0
|
40,0
|
|
k
Stack height
|
614,0
|
623,0
|
632,0
|
|
l
Reach
|
430,0
|
449,0
|
470,0
|
|
m
Standover height
|
739,0
|
767,0
|
795,0
|
|
x
Bottom bracket height
|
334,0
|
334,0
|
334,0
|
|
y
Front center
|
702,0
|
725,0
|
749,0
|
