Merida One-Twenty 29" XT Edition 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
130mm
Rear travel
120mm

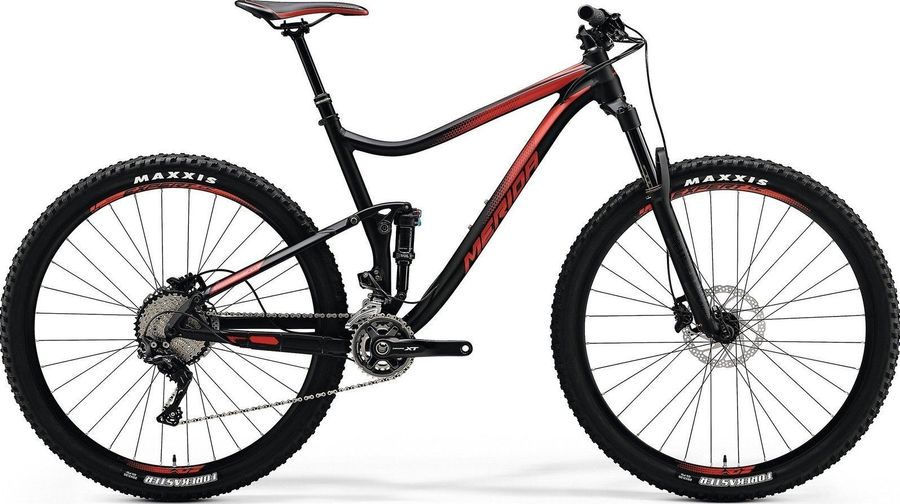

Merida One-Twenty 29" XT Edition 2018

About the Merida One-Twenty 29" XT Edition 2018

The Merida One-Twenty 29" XT Edition 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, e-thru axle, and hydraulic disc brakes. The bike weighs approximately 13,9 kg.

Features

The Merida One-Twenty 29" XT Edition 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
None included
Components
Steam
Merida Expert, 3d forged 6061 aluminium, oversize clamp, +/- 6° rise
Saddle
Merida Sport
Headset
Merida M2339
Seatpost
Merida Expert Dropper
Handlebar
Merida Expert CC, 740mm wide, 10mm rise
Brake lever
Shimano M500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano XT
Shifter
Shimano XT, 22-speed, rapid fire
Front derailleur
Shimano XT
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminum
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float Performance
Wheels
Rims
Merida Expert CC, 22.5mm inner width, tubeless ready
Tires
Maxxis Forekaster, folding, 2.35"
Spokes
Double butted black stainless
Rear hub
Front: Shimano Deore, Boost, Rear: Shimano Deore, Boost, thru axle, centerlock
Front hub
Front: Shimano Deore, Boost, Rear: Shimano Deore, Boost, thru axle, centerlock

Geometry

Size MD LG XL
a
Seat tube length
450,0
500,0
550,0
b
Seat tube angle
75,0º
75,0º
75,0º
c
Top tube length
594,0
617,0
641,0
d
Head tube length
95,0
105,0
115,0
e
Head tube angle
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
g
Trail
94,0
94,0
94,0
h
Wheelbase
1143,0
1166,0
1190,0
i
Chainstay length
444,0
444,0
444,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
614,0
623,0
632,0
l
Reach
430,0
449,0
470,0
m
Standover height
739,0
767,0
795,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
702,0
725,0
749,0
