Merida ONE-TWENTY 3000 2022

MTB Trail
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

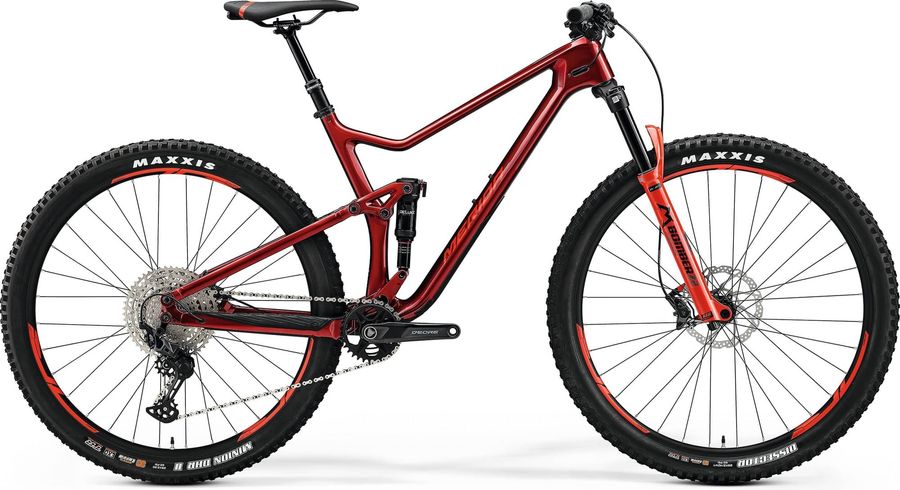

Merida ONE-TWENTY 3000 2022

About the Merida ONE-TWENTY 3000 2022

The Merida ONE-TWENTY 3000 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Merida ONE-TWENTY 3000 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA COMP SL, V-mount, incl. MERIDA minitool
Headset
FSA NO.47/50
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost
Handlebar
MERIDA EXPERT TR, material: aluminium, 760mm width, 20mm rise
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano Deore M6100, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano SL -MT500-IL
Bottom bracket
Shimano MT500-PA pressfit
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Chain
KMC X12
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
ONE-TWENTY CFA, 120mm suspension travel, material: carbon/aluminium, 29x2.35" max. wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
Marzocchi Z2 Air
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Dissector, 29x2.4", fold, TR EXO 3C MaxxTerra
Spokes
Double Butted Black stainless
Rear hub
Shimano MT410-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
572,0
592,0
614,0
637,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
f
Rake
51,0
51,0
52,0
50,0
g
Trail
101,0
101,0
100,0
102,0
h
Wheelbase
1141,0
1160,7
1185,0
1208,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
607,0
607,0
616,0
626,0
l
Reach
415,0
435,0
455,0
475,0
m
Standover height
703,0
718,0
745,0
770,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
709,0
729,0
753,0
776,0
