Merida ONE-TWENTY 400 2018

MTB Trail
Groupset
Shimano XT
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
120mm

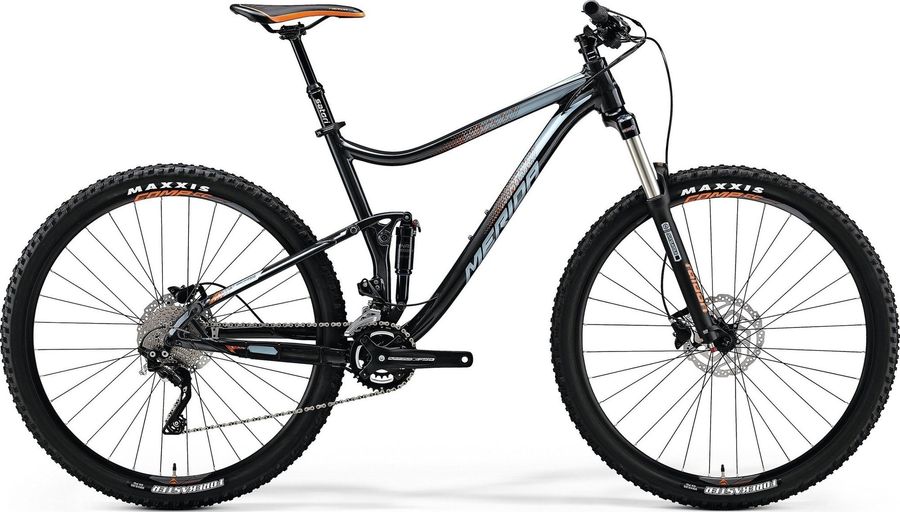

Merida ONE-TWENTY 400 2018

About the Merida ONE-TWENTY 400 2018

The Merida ONE-TWENTY 400 2018 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,5 kg.

Features

The Merida ONE-TWENTY 400 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Saddle
MERIDA Sport
Headset
FSA NO.57/61BP
Seatpost
Satori Dropper 31.6mm
Handlebar
MERIDA Expert CC 740mm wide 10mm rise
Brake lever
Shimano M315
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Alfa drive 36-22 teeth
Shifter
Shimano Deore 20 speed rapid fire
Front derailleur
Shimano Deore
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
ONE-TWENTY LITE
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour Raidon XC-LO-R
Wheels
Rims
MERIDA BIG.SEVEN/BIG.NINE Comp CC
Tires
Maxxis Forekaster 2.35" folding
Spokes
Black stainless
Rear hub
Shimano centerlock quick release front with Shimano Deore 12mm Boost standard centerlock rear bolt through axle.
Front hub
Shimano centerlock quick release front with Shimano Deore 12mm Boost standard centerlock rear bolt through axle.

Geometry

Size SM MD MD MD MD LG LG LG LG XL
a
Seat tube length
415,0
450,0
450,0
450,0
450,0
500,0
500,0
500,0
500,0
550,0
b
Seat tube angle
74,5º
74,5º
74,5º
75,0º
75,0º
75,0º
75,0º
74,5º
74,5º
75,0º
c
Top tube length
573,0
593,0
593,0
593,0
593,0
616,0
616,0
618,0
618,0
640,0
d
Head tube length
105,0
110,0
110,0
95,0
95,0
105,0
105,0
120,0
120,0
115,0
e
Head tube angle
68,0º
68,0º
68,0º
69,0º
69,0º
69,0º
69,0º
68,0º
68,0º
69,0º
f
Rake
40,0
40,0
40,0
46,0
46,0
46,0
46,0
39,0
39,0
46,0
g
Trail
100,0
100,0
108,0
87,0
94,0
87,0
94,0
102,0
109,0
94,0
h
Wheelbase
1120,0
1140,0
1140,0
1142,0
1142,0
1165,0
1165,0
1165,0
1165,0
1189,0
i
Chainstay length
438,0
438,0
438,0
443,0
443,0
443,0
443,0
438,0
438,0
443,0
j
Bottom bracket drop
25,0
25,0
25,0
40,0
40,0
40,0
40,0
25,0
25,0
40,0
k
Stack height
587,0
591,0
591,0
613,0
613,0
622,0
622,0
601,0
601,0
631,0
l
Reach
410,0
428,0
428,0
429,0
429,0
448,0
448,0
450,0
450,0
469,0
m
Standover height
705,0
730,0
730,0
738,0
738,0
766,0
766,0
754,0
754,0
794,0
x
Bottom bracket height
330,0
330,0
349,0
315,0
334,0
315,0
334,0
330,0
349,0
334,0
y
Front center
683,0
703,0
703,0
702,0
702,0
725,0
725,0
728,0
728,0
749,0
