Merida ONE-TWENTY 500 2019

MTB Trail

Groupset

Shimano Deore

Wheel size

27,5" / 29"

Suspension type

Full suspension

Weight

14,52 kg

Front travel

130mm

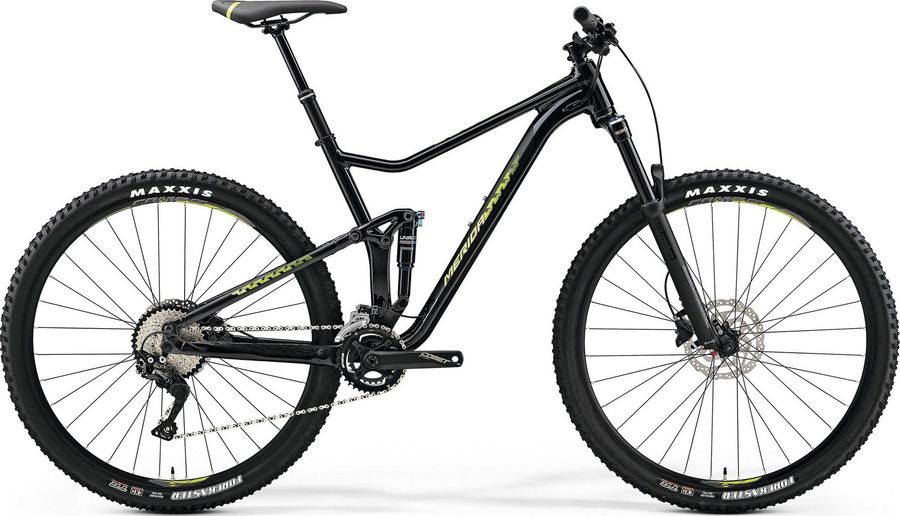

About the Merida ONE-TWENTY 500 2019

The Merida ONE-TWENTY 500 2019 is a Full suspension Trail Mountain Bike. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,52 kg.

Features

The Merida ONE-TWENTY 500 2019 has 4 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Components
Saddle	MERIDA Comp CC
Headset	FSA NO.47/50, 2191027082
Seatpost	MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Handlebar	MERIDA Expert CC, 740mm width, 10mm rise
Brake lever	Shimano MT-200
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	FSA Comet Modular MegaExo 36-26 teeth
Shifter	Shimano Deore / Shimano Deore
Front derailleur	Shimano Deore
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Chain	KMC X10
Cassette	Shimano Deore CS-HG500-10

Frameset
Frame	ONE-TWENTY LITE
Rear suspension	SR Suntour Unair LOR8
Front suspension	SR Suntour Raidon 34

Wheels
Rims	MERIDA Comp CC, 20mm inner width
Tires	Maxxis Forekaster, 29x2.35" / 27.5x2.35", fold, TR EXO Dual
Spokes	Black stainless
Rear hub	Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Front hub	Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
