Merida ONE-TWENTY 600 2017

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,97 kg

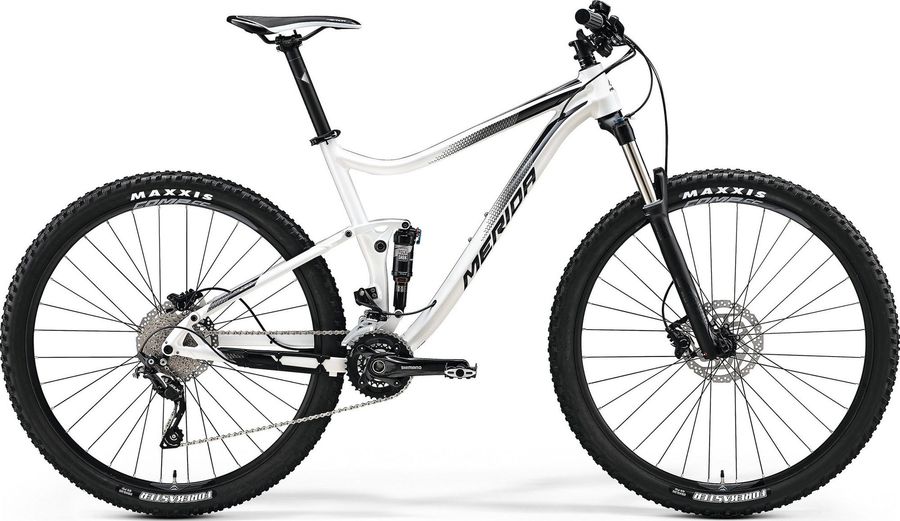

Merida ONE-TWENTY 600 2017

About the Merida ONE-TWENTY 600 2017

The Merida ONE-TWENTY 600 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 13,97 kg.

Features

The Merida ONE-TWENTY 600 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA Sport
Headset
Big Conoid semi
Seatpost
MERIDA Expert SB0 31.6
Handlebar
MERIDA Expert OS 740 R12
Brake lever
Shimano M506
Brakes
Shimano BR-M447
Drivetrain
Crankset
Shimano M627 38-24(27.5") / 36-22(29")
Shifter
Shimano Deore-i
Front derailleur
Shimano Deore double side swing
Chain
KMC X10
Rear derailleur
Shimano SLX RD-M670-SGS 281 g SGS 10s
Average weight (g)
281
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M670-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ONE-TWENTY TFS
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
MERIDA BIG.NINE / BIG.SEVEN Comp CC
Tires
Maxxis Forekaster 2.35 fold
Spokes
Black stainless
Rear hub
FoBearing Cen 15 / FoBearing Cen 12
Front hub
FoBearing Cen 15 / FoBearing Cen 12

Geometry

Size SM MD MD MD MD LG LG LG LG XL
a
Seat tube length
415,0
450,0
450,0
450,0
450,0
500,0
500,0
500,0
500,0
551,0
b
Seat tube angle
74,5º
74,5º
74,5º
75,0º
75,0º
75,0º
75,0º
74,5º
74,5º
75,0º
c
Top tube length
573,0
593,0
593,0
593,0
593,0
616,0
616,0
618,0
618,0
640,0
d
Head tube length
105,0
110,0
110,0
95,0
95,0
105,0
105,0
120,0
120,0
115,0
e
Head tube angle
68,0º
68,0º
68,0º
69,0º
69,0º
69,0º
69,0º
68,0º
68,0º
69,0º
f
Rake
40,0
40,0
40,0
46,0
46,0
46,0
46,0
39,0
39,0
46,0
g
Trail
100,0
100,0
108,0
87,0
94,0
87,0
94,0
102,0
109,0
94,0
h
Wheelbase
1120,0
1140,0
1140,0
1142,0
1142,0
1165,0
1165,0
1165,0
1165,0
1189,0
i
Chainstay length
438,0
438,0
438,0
443,0
443,0
443,0
443,0
438,0
438,0
443,0
j
Bottom bracket drop
25,0
25,0
25,0
40,0
40,0
40,0
40,0
25,0
25,0
40,0
k
Stack height
587,0
591,0
591,0
613,0
613,0
622,0
622,0
601,0
601,0
631,0
l
Reach
410,0
428,0
428,0
429,0
429,0
448,0
448,0
450,0
450,0
469,0
m
Standover height
705,0
730,0
730,0
738,0
738,0
766,0
766,0
754,0
754,0
794,0
x
Bottom bracket height
330,0
330,0
349,0
315,0
334,0
315,0
334,0
330,0
349,0
334,0
y
Front center
683,0
703,0
703,0
702,0
702,0
725,0
725,0
728,0
728,0
749,0
