Merida ONE-TWENTY 600 2018

MTB Trail
Groupset
Shimano SLX
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,1 kg
Front travel
130mm

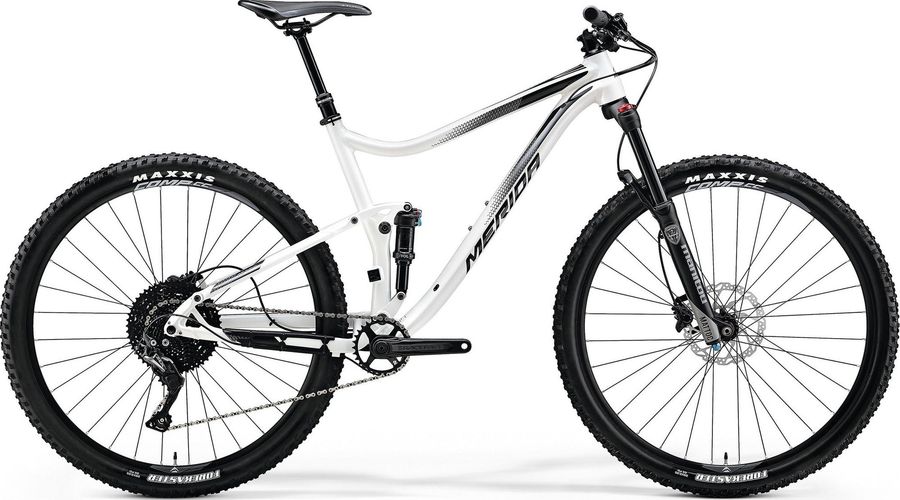

Merida ONE-TWENTY 600 2018

About the Merida ONE-TWENTY 600 2018

The Merida ONE-TWENTY 600 2018 is a Full suspension Trail Mountain Bike. Equipped with a Shimano SLX drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,1 kg.

Features

The Merida ONE-TWENTY 600 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Saddle
MERIDA Sport
Headset
MERIDA M2339
Seatpost
MERIDA Expert Dropper 31.6mm
Handlebar
MERIDA Expert CC 740mm wide 10mm rise
Brake lever
Shimano M500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Affect 32(27.5“) / 30(29“) teeth
Shifter
Shimano SLX 11 speed rapid fire shifter
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
ONE-TWENTY LITE
Rear suspension
Fox Float Performance
Front suspension
Manitou Mattoc
Wheels
Rims
MERIDA BIG.SEVEN/BIG.NINE Comp CC
Tires
Maxxis Forekaster 2.35" folding
Spokes
Black stainless
Rear hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Front hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock

Geometry

Size SM MD MD MD MD LG LG LG LG XL
a
Seat tube length
415,0
450,0
450,0
450,0
450,0
500,0
500,0
500,0
500,0
550,0
b
Seat tube angle
74,5º
74,5º
74,5º
75,0º
75,0º
75,0º
75,0º
74,5º
74,5º
75,0º
c
Top tube length
573,0
593,0
593,0
593,0
593,0
616,0
616,0
618,0
618,0
640,0
d
Head tube length
105,0
110,0
110,0
95,0
95,0
105,0
105,0
120,0
120,0
115,0
e
Head tube angle
68,0º
68,0º
68,0º
69,0º
69,0º
69,0º
69,0º
68,0º
68,0º
69,0º
f
Rake
40,0
40,0
40,0
46,0
46,0
46,0
46,0
39,0
39,0
46,0
g
Trail
100,0
100,0
108,0
87,0
94,0
87,0
94,0
102,0
109,0
94,0
h
Wheelbase
1120,0
1140,0
1140,0
1142,0
1142,0
1165,0
1165,0
1165,0
1165,0
1189,0
i
Chainstay length
438,0
438,0
438,0
443,0
443,0
443,0
443,0
438,0
438,0
443,0
j
Bottom bracket drop
25,0
25,0
25,0
40,0
40,0
40,0
40,0
25,0
25,0
40,0
k
Stack height
587,0
591,0
591,0
613,0
613,0
622,0
622,0
601,0
601,0
631,0
l
Reach
410,0
428,0
428,0
429,0
429,0
448,0
448,0
450,0
450,0
469,0
m
Standover height
705,0
730,0
730,0
738,0
738,0
766,0
766,0
754,0
754,0
794,0
x
Bottom bracket height
330,0
330,0
349,0
315,0
334,0
315,0
334,0
330,0
349,0
334,0
y
Front center
683,0
703,0
703,0
702,0
702,0
725,0
725,0
728,0
728,0
749,0
