Merida ONE-TWENTY 7. 400 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,86 kg
Front travel
130mm
Rear travel
120mm
Merida ONE-TWENTY 7. 400 2020

About the Merida ONE-TWENTY 7. 400 2020

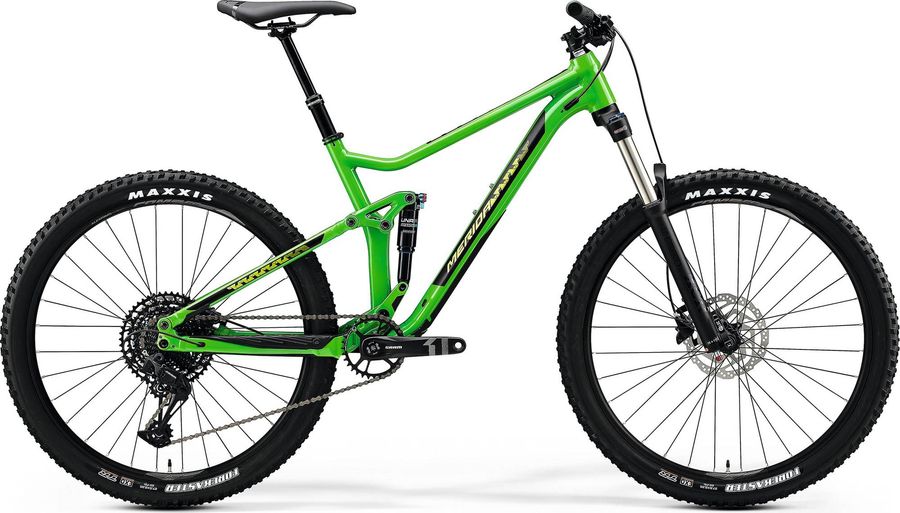

The Merida ONE-TWENTY 7. 400 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,86 kg.

Features

The Merida ONE-TWENTY 7. 400 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.47/50P Neck
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost
Handlebar
MERIDA EXPERT CC, material: aluminium, 740mm width, 10mm rise
Discs
Shimano RT10
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM X1 1000 Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
SRAM SX Eagle
Bottom bracket
SRAM BB DUB PF MTB 92
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ONE-TWENTY LITE, 120mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour XCR-34
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Forekaster
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size SM SM/MD MD MD LG XL
a
Seat tube length
400,0
400,0
440,0
440,0
480,0
520,0
b
Seat tube angle
75,0º
75,5º
75,5º
75,0º
75,5º
75,5º
c
Top tube length
571,0
572,0
592,0
593,0
614,0
637,0
d
Head tube length
105,0
95,0
95,0
115,0
105,0
115,0
e
Head tube angle
66,8º
67,3º
67,3º
66,8º
67,3º
67,3º
f
Rake
42,0
51,0
51,0
42,0
52,0
50,0
g
Trail
107,0
101,0
101,0
107,0
100,0
102,0
h
Wheelbase
1130,0
1141,0
1161,0
1154,0
1185,0
1208,0
i
Chainstay length
430,0
435,0
435,0
430,0
435,0
435,0
j
Bottom bracket drop
21,0
40,0
40,0
21,0
40,0
40,0
k
Stack height
581,0
607,0
607,0
590,0
616,0
626,0
l
Reach
415,0
415,0
435,0
435,0
455,0
475,0
m
Standover height
698,0
707,0
730,0
726,0
759,0
787,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
334,0
y
Front center
701,0
709,0
729,0
725,0
753,0
776,0
