Merida ONE-TWENTY 7. 600 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
14,49 kg
Front travel
130mm
Rear travel
120mm
Merida ONE-TWENTY 7. 600 2020

About the Merida ONE-TWENTY 7. 600 2020

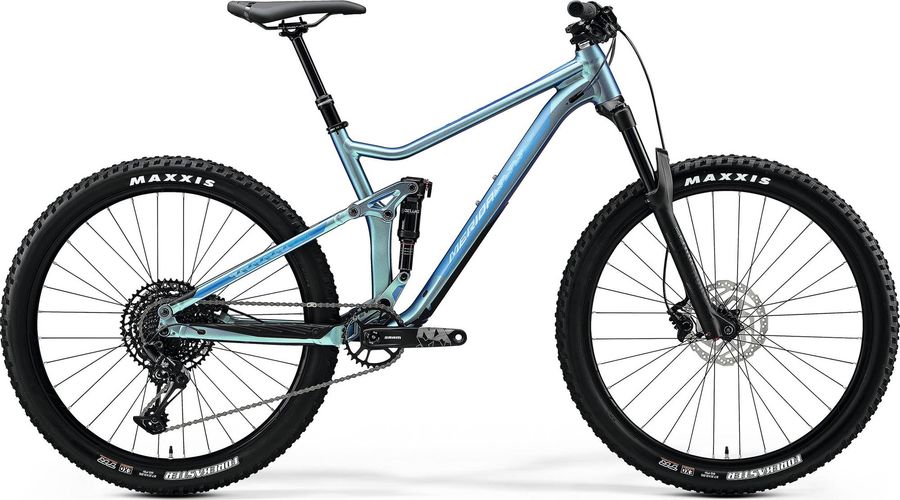

The Merida ONE-TWENTY 7. 600 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,49 kg.

Features

The Merida ONE-TWENTY 7. 600 2020 has 4 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.47/50P Neck
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost
Handlebar
MERIDA EXPERT TR, material: aluminium, 760mm width, 20mm rise
Discs
Shimano RT10
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
SRAM NX Eagle
Bottom bracket
SRAM BB DUB PF MTB 92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
ONE-TWENTY LITE, 120mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Forekaster
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size SM MD MD LG
a
Seat tube length
400,0
440,0
440,0
480,0
b
Seat tube angle
75,5º
75,5º
75,0º
75,5º
c
Top tube length
572,0
592,0
593,0
614,0
d
Head tube length
95,0
95,0
115,0
105,0
e
Head tube angle
67,3º
67,3º
66,8º
67,3º
f
Rake
51,0
51,0
42,0
52,0
g
Trail
101,0
101,0
107,0
100,0
h
Wheelbase
1141,0
1161,0
1154,0
1185,0
i
Chainstay length
435,0
435,0
430,0
435,0
j
Bottom bracket drop
40,0
40,0
21,0
40,0
k
Stack height
607,0
607,0
590,0
616,0
l
Reach
415,0
435,0
435,0
455,0
m
Standover height
707,0
730,0
726,0
759,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
709,0
729,0
725,0
753,0
