Merida ONE-TWENTY 700 2021

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,47 kg
Front travel
130mm
Rear travel
120mm

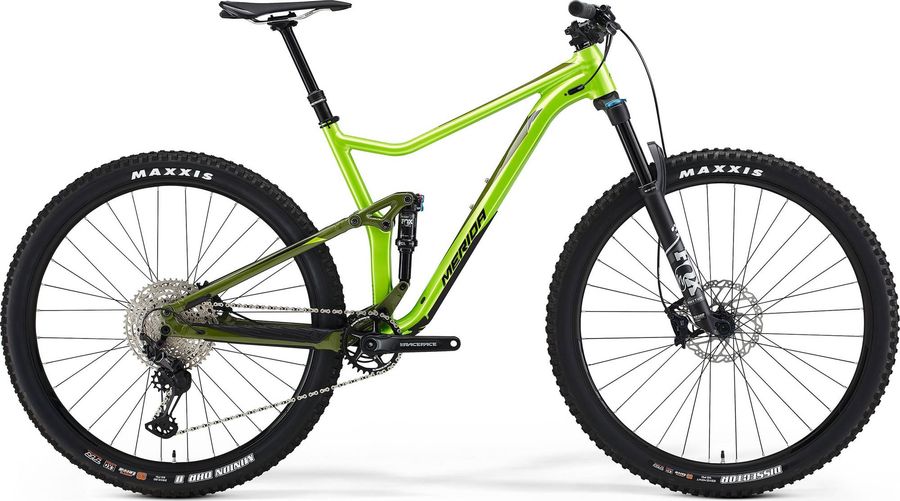

Merida ONE-TWENTY 700 2021

About the Merida ONE-TWENTY 700 2021

The Merida ONE-TWENTY 700 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,47 kg.

Features

The Merida ONE-TWENTY 700 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
MERIDA EXPERT TR, material: aluminium, 35mm diameter, 0° stem angle, 50 mm all sizes
Saddle
MERIDA EXPERT CC
Battery
MERIDA Multitool with saddlebox
Headset
FSA NO.47/50
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Handlebar
MERIDA EXPERT TR, material: aluminium, 760mm width, 20mm rise
Discs
Shimano RT54, 180mm
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Aeffect, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano SL -MT500-IL / Shimano XT
Bottom bracket
Race Face BB BB92– Ø24mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Chain
KMC X12
Frameset
Frame
ONE-TWENTY LITE, 120mm suspension travel, material: aluminium, 29x2.35" max. wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Dissector, 29x2.4", fold, TR EXO 3C MaxxTerra
Rear hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Geometry

Size MD LG
a
Seat tube length
440,0
480,0
b
Seat tube angle
75,5º
75,5º
c
Top tube length
598,0
620,0
d
Head tube length
95,0
105,0
e
Head tube angle
67,3º
67,3º
f
Rake
51,0
52,0
g
Trail
101,0
100,0
h
Wheelbase
1167,0
1191,0
i
Chainstay length
441,0
441,0
j
Bottom bracket drop
40,0
40,0
k
Stack height
613,0
622,0
l
Reach
441,0
461,0
m
Standover height
736,0
765,0
x
Bottom bracket height
334,0
334,0
y
Front center
729,0
753,0
