Merida ONE-TWENTY 800 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,34 kg
Front travel
130mm
Rear travel
120mm

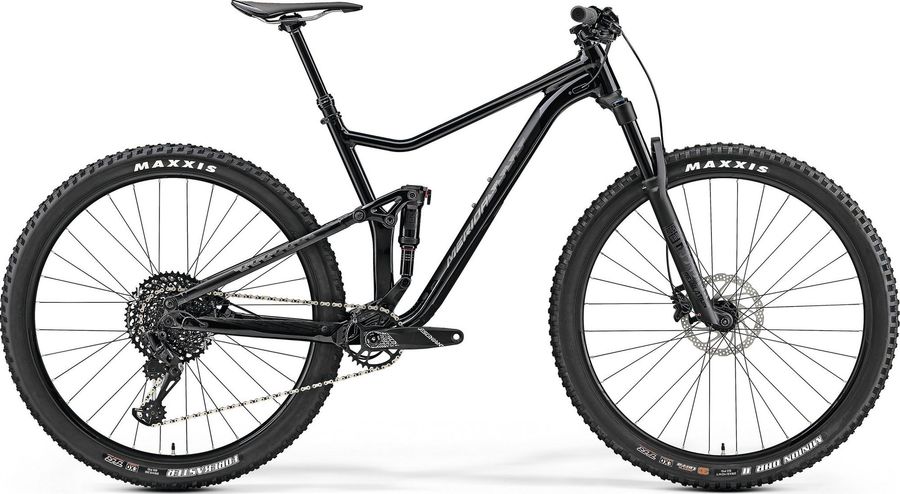

Merida ONE-TWENTY 800 2019

About the Merida ONE-TWENTY 800 2019

The Merida ONE-TWENTY 800 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,34 kg.

Features

The Merida ONE-TWENTY 800 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Expert EC
Pedals
None included
Components
Steam
Merida Expert TR, 35mm diameter, 0° stem angle, 50mm length
Saddle
MERIDA Expert CC
Headset
FSA NO.47/50, 2191027082
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Handlebar
MERIDA Expert TR, 760mm width, 20mm rise
Brake lever
Shimano MT-501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Descendant 6K Eagle, 32 teeth
Shifter
no / SRAM GX Eagle
Bottom bracket
SRAM BB DUB press-fit MTB 92
Front derailleur
Low direct mount (none included)
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ONE-TWENTY LITE
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA Expert TR, 29mm inner width
Tires
Maxxis Minion DHR II, 29x2.4", fold, TR EXO 3C / Maxxis Forekaster, 29x2.35", fold, TR EXO Dual
Spokes
Double Butted Black stainless
Rear hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Front hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD

Geometry

Size SM SM MD MD MD MD LG XL
a
Seat tube length
400,0
400,0
440,0
440,0
440,0
440,0
480,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
572,0
572,0
592,0
592,0
592,0
592,0
614,4
636,8
d
Head tube length
95,0
95,0
95,0
95,0
95,0
95,0
105,0
115,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
f
Rake
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
g
Trail
93,0
93,0
93,0
93,0
93,0
93,0
101,0
101,0
h
Wheelbase
1140,7
1140,7
1160,7
1160,7
1160,7
1160,7
1184,6
1208,4
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
40,0
40,0
40,0
k
Stack height
607,1
607,1
607,1
607,1
607,1
607,1
616,3
625,5
l
Reach
415,0
415,0
435,0
435,0
435,0
435,0
455,0
475,0
m
Standover height
707,3
707,3
729,6
729,6
729,6
729,6
759,4
786,8
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
315,0
334,0
334,0
y
Front center
709,0
709,0
729,0
729,0
729,0
729,0
753,0
776,0
