Merida ONE-TWENTY RC 9. 300 2020

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,48 kg
Front travel
120mm
Rear travel
100mm

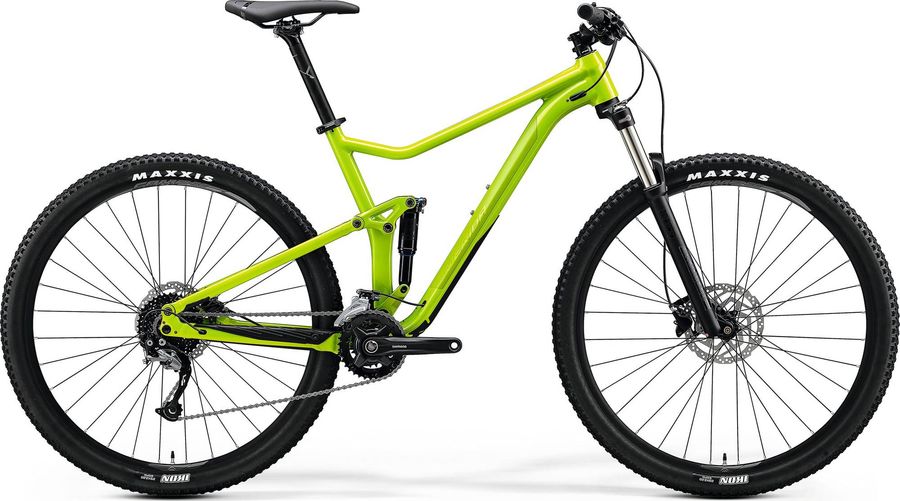

Merida ONE-TWENTY RC 9. 300 2020

About the Merida ONE-TWENTY RC 9. 300 2020

The Merida ONE-TWENTY RC 9. 300 2020 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,48 kg.

Features

The Merida ONE-TWENTY RC 9. 300 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.47/50
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano MT210-B2, 36-22 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano Alivio
Bottom bracket
BB-MT500-PA
Front derailleur
Shimano Alivio
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC X10
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
ONE-TWENTY RC LITE, 100mm suspension travel, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Rear suspension
SR Suntour Edge LOR8
Front suspension
SR Suntour XCR 32
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Black stainless
Rear hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
571,0
591,0
613,0
635,5
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
97,0
97,0
97,0
97,0
h
Wheelbase
1137,0
1157,0
1181,0
1205,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
44,0
44,0
44,0
44,0
k
Stack height
604,0
604,0
613,0
622,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
703,0
725,0
755,0
783,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
706,0
726,0
750,0
773,0
