Merida ONE-TWENTY RC 9. 9000 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,46 kg
Front travel
120mm
Rear travel
100mm

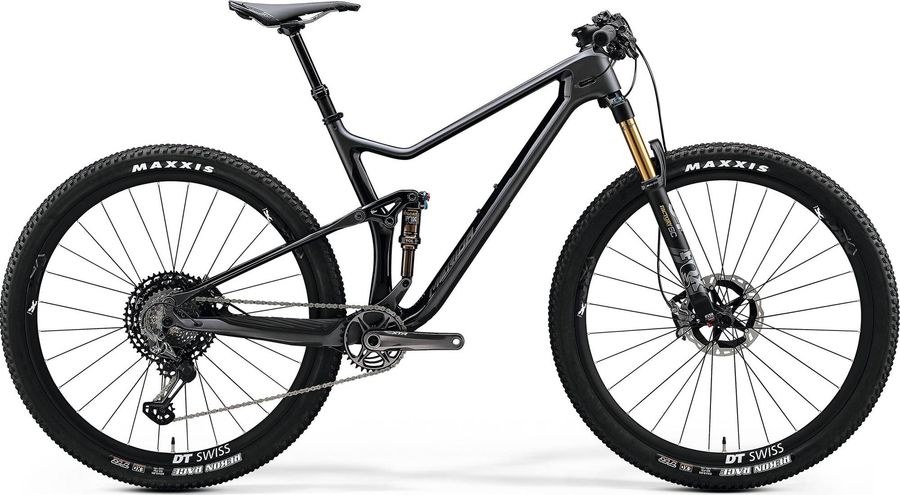

Merida ONE-TWENTY RC 9. 9000 2020

About the Merida ONE-TWENTY RC 9. 9000 2020

The Merida ONE-TWENTY RC 9. 9000 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,46 kg.

Features

The Merida ONE-TWENTY RC 9. 9000 2020 has 7 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
Prologo Scratch 2
Headset
FSA NO.47/50CF
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost
Handlebar
MERIDA TEAM CC, material: carbon, 740mm width, flat
Discs
Shimano RT-MT900
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR, 34 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano XTR
Bottom bracket
Shimano BB94-41A Pressfit
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
ONE-TWENTY RC CF4, 100mm suspension travel, material: carbon, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Rear suspension
Fox Float Factory
Front suspension
Fox 34 Float Factory
Wheels
Rims
XRC 1200 Spline 25, 110x15mm width front hub, 148x12mm width rear hub, 25mm inner width, 6 Centerlock, Shimano 12 Speed, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Rekon Race
Rear hub
MERIDA COMP TR
Front hub
MERIDA COMP TR

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
480,0
520,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
571,0
591,0
613,0
635,5
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
52,0
52,0
51,0
51,0
g
Trail
97,0
97,0
98,0
98,0
h
Wheelbase
1137,0
1157,0
1180,5
1204,5
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
43,5
43,5
43,5
43,5
k
Stack height
603,5
603,5
612,5
622,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
-
-
-
-
x
Bottom bracket height
331,0
331,0
331,0
331,0
y
Front center
706,0
725,0
749,0
773,0
