BikeWise

Merida ONE-TWENTY XT-EDITION 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,64 kg
Front travel
130mm
Rear travel
120mm

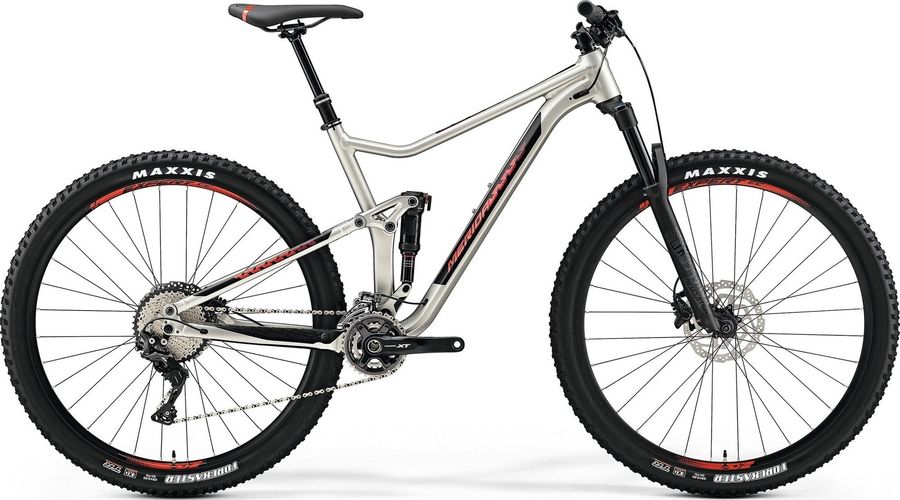

Merida ONE-TWENTY XT-EDITION 2019

About the Merida ONE-TWENTY XT-EDITION 2019

The Merida ONE-TWENTY XT-EDITION 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,64 kg.

Features

The Merida ONE-TWENTY XT-EDITION 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Merida Comp EC
Pedals
None included
Components
Steam
Merida Expert CC, 31.8mm diameter, 6° stem angle, 60mm length
Saddle
MERIDA Comp CC
Headset
FSA NO.47/50, 2191027082
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Handlebar
MERIDA Expert CC, 740mm width, 10mm rise
Brake lever
Shimano MT-501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano XT, 34-24 teeth / 36-26 teeth
Shifter
Shimano XT
Bottom bracket
Shimano MT800-PA press-fit
Front derailleur
Shimano XT
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
ONE-TWENTY LITE
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MERIDA Expert CC, 22.8mm inner width
Tires
Maxxis Forekaster, 29x2.35" / 27.5x2.35", fold, TR EXO Dual
Spokes
Double Butted Black stainless
Rear hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Front hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock

Geometry

Size SM SM MD MD MD MD LG XL
a
Seat tube length
400,0
400,0
440,0
440,0
440,0
440,0
480,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
572,0
572,0
592,0
592,0
592,0
592,0
614,4
636,8
d
Head tube length
95,0
95,0
95,0
95,0
95,0
95,0
105,0
115,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
67,3º
f
Rake
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
g
Trail
93,0
93,0
93,0
93,0
93,0
93,0
101,0
101,0
h
Wheelbase
1140,7
1140,7
1160,7
1160,7
1160,7
1160,7
1184,6
1208,4
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
40,0
40,0
40,0
k
Stack height
607,1
607,1
607,1
607,1
607,1
607,1
616,3
625,5
l
Reach
415,0
415,0
435,0
435,0
435,0
435,0
455,0
475,0
m
Standover height
707,3
707,3
729,6
729,6
729,6
729,6
759,4
786,8
x
Bottom bracket height
315,0
315,0
315,0
315,0
315,0
315,0
334,0
334,0
y
Front center
709,0
709,0
729,0
729,0
729,0
729,0
753,0
776,0
