Merida ONE-TWENTY XT-EDITION JULIET 2017

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,39 kg

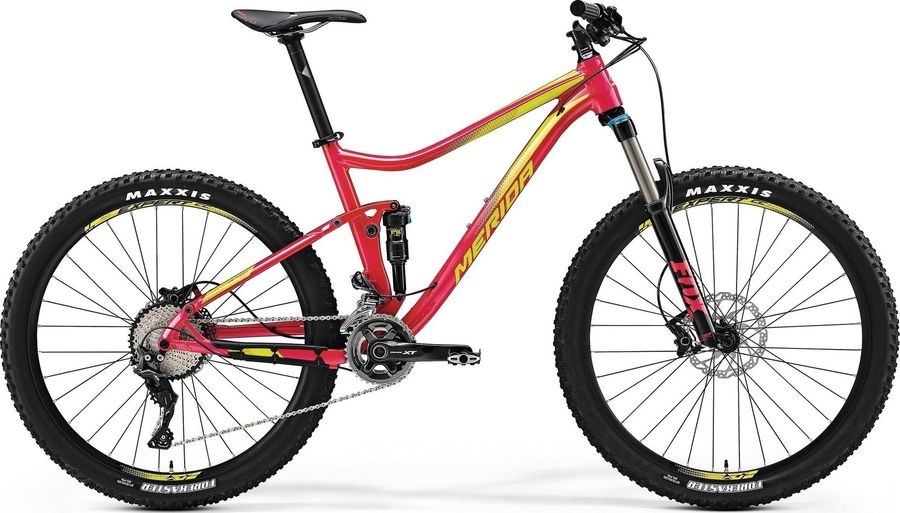

Merida ONE-TWENTY XT-EDITION JULIET 2017

About the Merida ONE-TWENTY XT-EDITION JULIET 2017

The Merida ONE-TWENTY XT-EDITION JULIET 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes. The bike weighs approximately 13,39 kg.

Features

The Merida ONE-TWENTY XT-EDITION JULIET 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Prologo Kappa Dea
Headset
Big Conoid semi neck
Seatpost
MERIDA Expert SB0 31.6
Handlebar
MERIDA Expert OS 740 R12
Brake lever
Shimano M615
Brakes
Shimano Deore BR-M615
Drivetrain
Crankset
Shimano XT 34-24
Shifter
Shimano XT-i / Shimano XT-I 11
Front derailleur
Shimano XT sideswing
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
ONE-TWENTY TFS
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
MERIDA Expert CC
Tires
Maxxis Forekaster 2.35 fold
Spokes
Black stainless
Rear hub
FoBearing Cen 15 boost / FoBearing Cen 12
Front hub
FoBearing Cen 15 boost / FoBearing Cen 12

Geometry

Size SM MD LG
a
Seat tube length
415,0
450,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
573,0
593,0
618,0
d
Head tube length
105,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
40,0
40,0
39,0
g
Trail
100,0
100,0
102,0
h
Wheelbase
1120,0
1140,0
1165,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
587,0
591,0
601,0
l
Reach
410,0
428,0
450,0
m
Standover height
705,0
730,0
754,0
x
Bottom bracket height
330,0
330,0
330,0
y
Front center
683,0
703,0
728,0
