Mondraker Chaser 2021

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,8 kg
Front travel
160mm
Rear travel
150mm

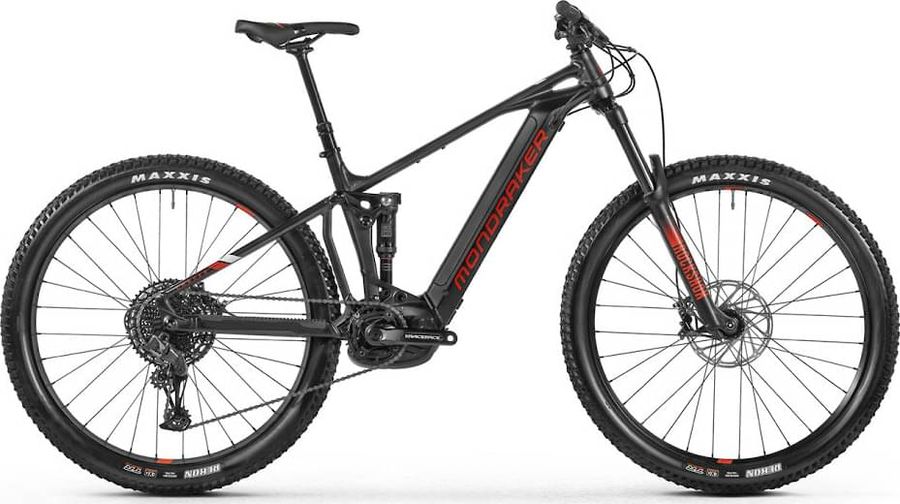

Mondraker Chaser 2021

About the Mondraker Chaser 2021

The Mondraker Chaser 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,8 kg.

Features

The Mondraker Chaser 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Twin, single lock-on, 135mm length
Components
Steam
Onoff Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp, 0° rise
Saddle
Mondraker e-MTB custom
Battery
Bosch Powertube, integrated, removable
Headset
Onoff Saturn, sealed angular contact bearings
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Handlebar
Onoff Sulfur 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Brake lever
SRAM G2 R, tool-free reach adjust
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
Race Face Aeffect E-Bike, 165mm length
Motor
Bosch Performance Line CX Cruise Gen4
Shifter
SRAM SX Eagle, 12-speed, X-ACTUATION 1:1, single click
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox 35 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-TK-A1
Name
35 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
MDK-HP1, 30mm (29") or 35mm (27.5+) internal width, tubeless ready, 32 hole
Tires
Maxxis Rekon, Dual Compound, EXO, TR, 60 TPI, folding bead, 2.6" (29") or 2.8" (27.5+) width
Spokes
CN round stainless steel
Rear hub
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with HG driver
Front hub
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
450,0
490,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
602,0
622,0
647,0
667,0
d
Head tube length
110,0
110,0
130,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1222,0
1242,0
1262,0
1282,0
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
19,0
19,0
19,0
19,0
k
Stack height
619,0
619,0
637,0
637,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
-
-
-
-
