Mondraker Chrono 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

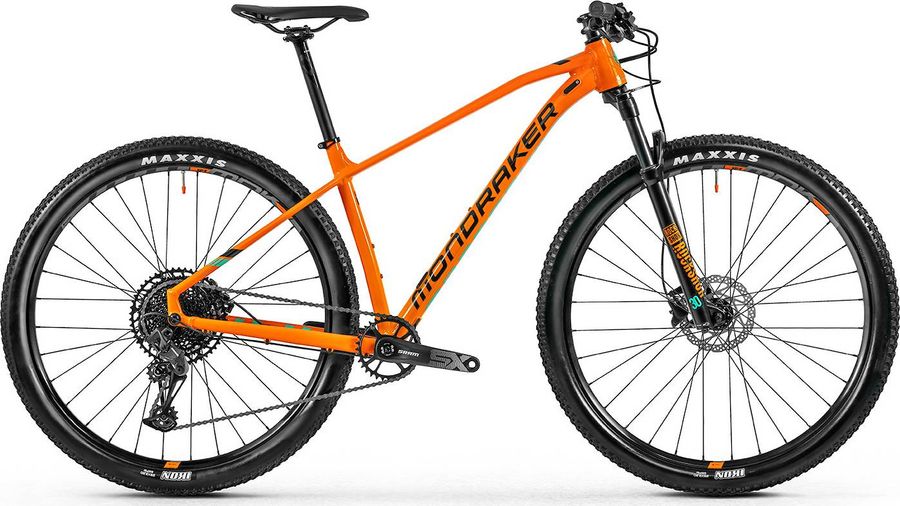

Mondraker Chrono 2020

About the Mondraker Chrono 2020

The Mondraker Chrono 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and tubeless ready.

Features

The Mondraker Chrono 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Twin, 1lock-on, 135mm
Components
Steam
OnOff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, 60mm on S/M, 80mm on L, 90mm on XL
Saddle
Mondraker XC Series Chrono
Headset
Onoff Saturn, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
OnOff Sulfur 0-R, 6061 T6 Alloy, 3D forged, 400mm length
Handlebar
Onoff Sulfur 0.2, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm clamp
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB, 170mm on S and 175mm on M/L/XL
Shifter
SRAM SX Eagle 12-speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 hole
Tires
Maxxis Ikon 2.2", 60TPI, wire bead
Spokes
CN round stainless steel
Rear hub
MDK DC20LW unsealed 9x135mm front and MDKDHT sealed bearing 12x148mm rear
Front hub
MDK DC20LW unsealed 9x135mm front and MDKDHT sealed bearing 12x148mm rear

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
470,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
100,0
100,0
110,0
125,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1082,0
1102,0
1122,0
1143,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
69,0
69,0
69,0
69,0
k
Stack height
613,0
613,0
623,0
637,0
l
Reach
401,0
421,0
439,0
455,0
m
Standover height
-
-
-
-
x
Bottom bracket height
305,0
305,0
305,0
305,0
y
Front center
-
-
-
-
