Mondraker Chrono Carbon 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11 kg
Front travel
100mm

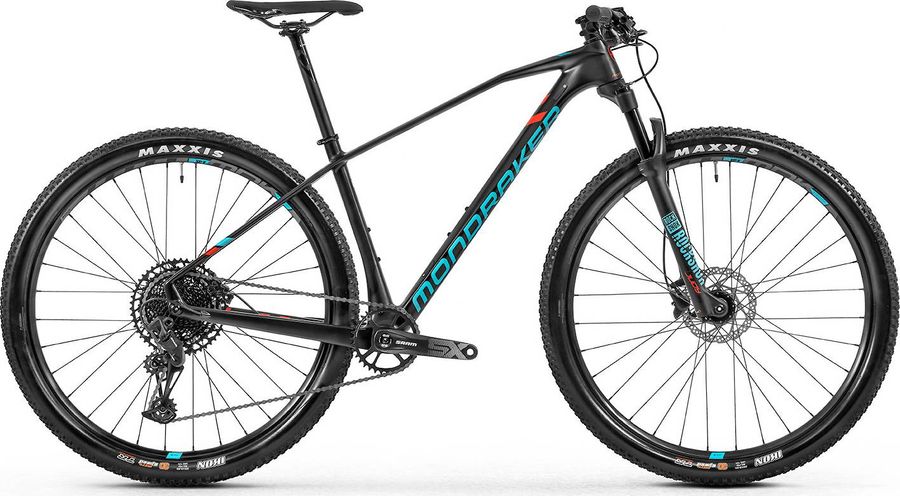

Mondraker Chrono Carbon 2020

About the Mondraker Chrono Carbon 2020

The Mondraker Chrono Carbon 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11 kg.

Features

The Mondraker Chrono Carbon 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Twin, 1lock-on, 135mm
Components
Steam
Mondraker Chrono Carbon, 6061 T6 Alloy, +/-5° rise, 31.8mm clamp, 60mm (S/M), 80mm (L), or 90mm (XL) reach
Saddle
Mondraker XC Series Chrono Carbon design
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
OnOff Sulfur 0-R, 6061 T6 Alloy, 400mm
Handlebar
Onoff Sulfur 0.2, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm clamp
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB, 170mm on S and 175mm on M/L/XL
Shifter
SRAM SX Eagle 12-speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Judy Gold Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
58, 62, 81
Maximum rotor size
185mm, 210mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A3
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Wheels
Rims
MDK-XP1 29 TLR, 23mm internal width, tubeless ready, 32 hole
Tires
Maxxis Ikon 29x2.2", 3C MaxxSpeed compound, tubeless ready, 120TPI, folding bead, front and rear
Spokes
CN round stainless steel
Rear hub
MDK DC711 15x110mm unsealed front and DHT 12x148mm sealed bearing rear
Front hub
MDK DC711 15x110mm unsealed front and DHT 12x148mm sealed bearing rear

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
470,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1081,0
1101,0
1122,0
1143,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
69,0
69,0
69,0
69,0
k
Stack height
600,0
605,0
614,0
627,0
l
Reach
406,0
425,0
442,0
458,0
m
Standover height
-
-
-
-
x
Bottom bracket height
305,0
305,0
305,0
305,0
y
Front center
-
-
-
-
