Mondraker Chrono Carbon R 2021

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,9 kg
Front travel
100mm

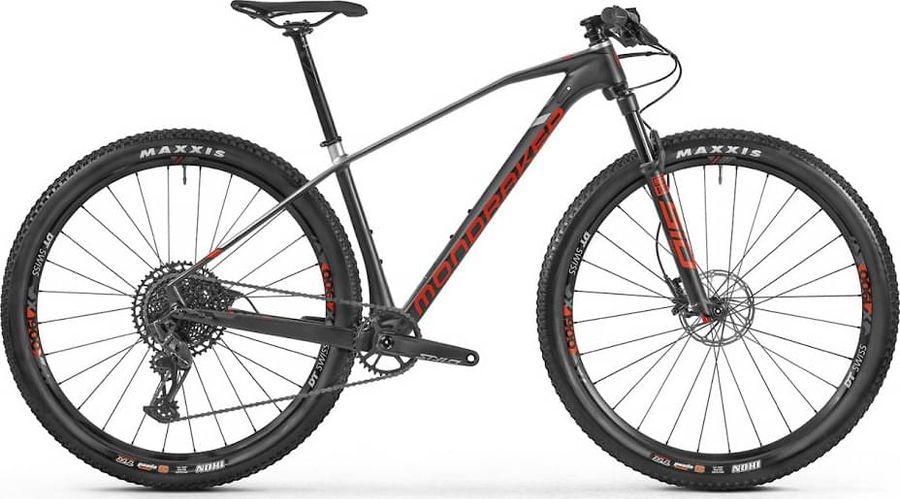

Mondraker Chrono Carbon R 2021

About the Mondraker Chrono Carbon R 2021

The Mondraker Chrono Carbon R 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,9 kg.

Features

The Mondraker Chrono Carbon R 2021 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ONOFF Twin, 135mm length, single lock-on
Components
Steam
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 60mm (SM), 70mm (MD), 80mm (LG), 90mm (XL)
Saddle
Mondraker XC Series, steel rails
Headset
ONOFF Titan, ACB sealed bearings
Seatpost
ONOFF Sulfur 0-R, 3D-forged 6061-T6 alloy, 400mm length
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 740mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Brake lever
SRAM Level, lever pivot bushings, tooled reach adjust
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Truvativ Stylo 6K Eagle DUB, 170mm length (SM), 175mm length (MD/LG/XL)
Shifter
SRAM SX Eagle, 12-speed, Trigger, X-ACTUATION
Bottom bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber
Front suspension
RockShox SID SL Select DebonAir 1468 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SEL-C1
Name
SID SL Select
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1468
Wheel size
29"
Wheels
Rims
DT Swiss X1900 Spline, 25mm internal width, sleeved aluminum, tubeless ready, 28 hole
Tires
Maxxis Ikon, 3C MaxxSpeed, TR, 120 TPI, folding bead, 29" x 2.2"
Spokes
DT Swiss Champion, straightpull
Rear hub
DT Swiss 370, 28 hole, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Front hub
DT Swiss 370, 28 hole, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
470,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1081,0
1101,0
1122,0
1143,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
69,0
69,0
69,0
69,0
k
Stack height
600,0
605,0
614,0
627,0
l
Reach
406,0
425,0
442,0
458,0
m
Standover height
-
-
-
-
x
Bottom bracket height
305,0
305,0
305,0
305,0
y
Front center
-
-
-
-
