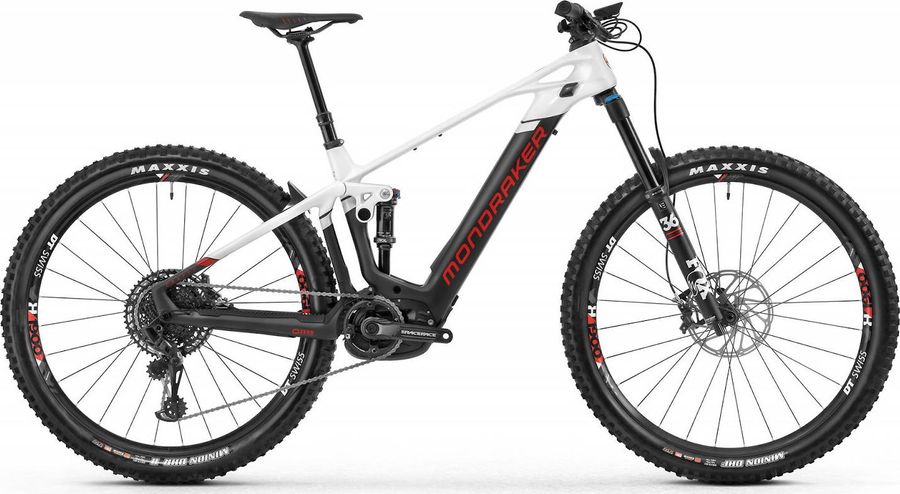

Mondraker Crafty Carbon R 2020
The Mondraker Crafty Carbon R 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
21,8 kg
Front travel
160mm
Rear travel
150mm
About the Mondraker Crafty Carbon R 2020
The Mondraker Crafty Carbon R 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 21,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
ONOFF Desert, lock-on, 135mm, sizes: S/M and L/XL
|
|---|
|
Steam
|
ONOFF Krypton FG, 30mm, 6061 forged alloy, 31.8mm barbore
|
|---|---|
|
Saddle
|
fi'zi:k Antares R7
|
|
Battery
|
Bosch PowerTube, internal
|
|
Headset
|
ACROS custom for 1.5" head tube, angular contact bearings 40mm x 52mm x 7mm, internal cable routing
|
|
Seatpost
|
ONOFF Pija dropper, internal routing, Travel: 125mm on S, 150mm on M/L, 170mm on XL
|
|
Handlebar
|
ONOFF Krypton 1.0, double butted 6061 alloy, 780mm, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm barbore
|
|
Brake lever
|
SRAM G2 RSC
|
|
Brakes
|
SRAM G2 RSC
Hydraulic
248 g
|
|
|
|
|
Crankset
|
Race Face Aeffect, e-bike, 165mm
|
|---|---|
|
Motor
|
Bosch Performance CX, 4th generation
|
|
Shifter
|
SRAM NX Eagle, trigger, 12-speed, X-ACTUATION, single click
|
|
Chain guide
|
Top only
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
DT Swiss H1900 SPLINE 29, 30mm internal width, tubeless ready, 28 spokes
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead, Rear: Maxxis Minion DHR II 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead
|
|
Spokes
|
DT Swiss Hybrid, straight pull
|
|
Rear hub
|
Front: DT Swiss 240, 15mm x 110mm, Rear: DT Swiss 240, 12mm x 148mm, 24Z ratchet system
|
|
Front hub
|
Front: DT Swiss 240, 15mm x 110mm, Rear: DT Swiss 240, 12mm x 148mm, 24Z ratchet system
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
602,0
|
622,0
|
647,0
|
667,0
|
|
d
Head tube length
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1222,0
|
1242,0
|
1262,0
|
1282,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
29,0
|
29,0
|
29,0
|
29,0
|
|
k
Stack height
|
619,0
|
619,0
|
637,0
|
637,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
