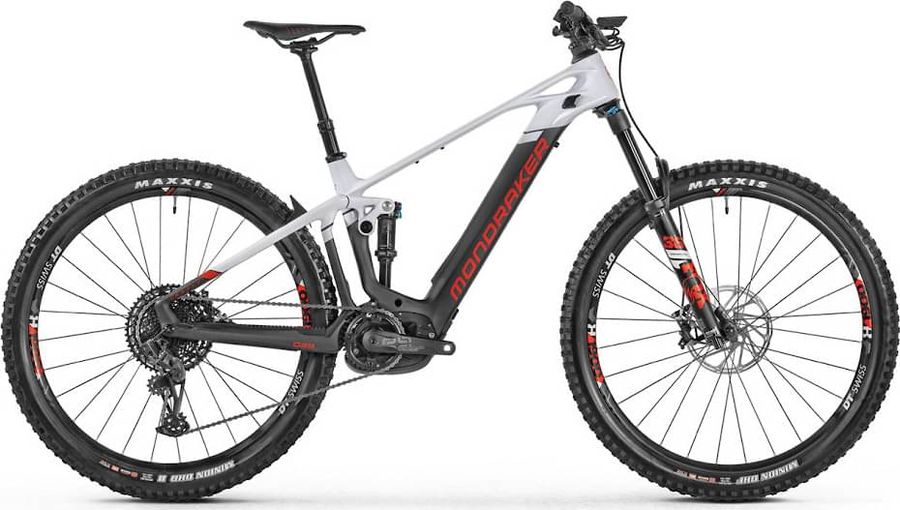

Mondraker Crafty Carbon R 2021
The Mondraker Crafty Carbon R 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22 kg
Front travel
160mm
Rear travel
150mm
About the Mondraker Crafty Carbon R 2021
The Mondraker Crafty Carbon R 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Desert, single lock-on, 135mm length
|
|---|
|
Steam
|
Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
|
|---|---|
|
Saddle
|
fi'zi:k Antares R7
|
|
Battery
|
Bosch Powertube, integrated, non-removable
|
|
Headset
|
ACROS custom, angular contact bearings, internal cable routing
|
|
Seatpost
|
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
|
|
Handlebar
|
Onoff Krypton 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
|
|
Brake lever
|
SRAM G2 RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust
|
|
Brakes
|
SRAM G2 RSC
Hydraulic
248 g
|
|
|
|
|
Crankset
|
e*thirteen e*Spec Plus E-Bike, 165mm length
|
|---|---|
|
Motor
|
Bosch Performance Line CX Cruise Gen4
|
|
Shifter
|
SRAM NX Eagle, 12-speed, X-ACTUATION 1:1, single click
|
|
Chain guide
|
Upper slider
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6"
|
|
Spokes
|
DT Swiss Hybrid, straight-pull
|
|
Rear hub
|
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and HG driver
|
|
Front hub
|
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and HG driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
602,0
|
622,0
|
647,0
|
667,0
|
|
d
Head tube length
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1222,0
|
1242,0
|
1262,0
|
1282,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
24,0
|
24,0
|
24,0
|
24,0
|
|
k
Stack height
|
619,0
|
619,0
|
637,0
|
637,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
