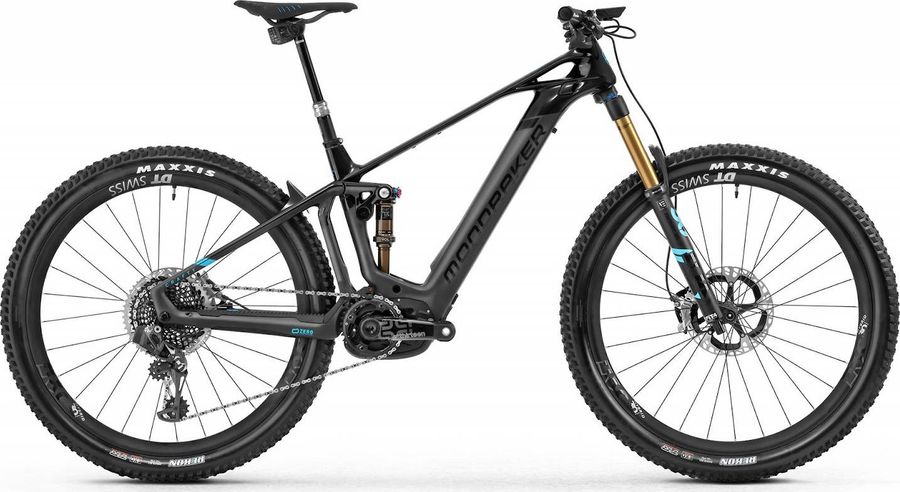

Mondraker Crafty Carbon RR SL 2020
The Mondraker Crafty Carbon RR SL 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
19,3 kg
Front travel
160mm
Rear travel
150mm
About the Mondraker Crafty Carbon RR SL 2020
The Mondraker Crafty Carbon RR SL 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 19,3 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Lizard Skins DSP, sizes: S/M and L/XL
|
|---|
|
Steam
|
ONOFF Krypton FG, 30mm, 6061 forged alloy, 31.8mm barbore
|
|---|---|
|
Saddle
|
fi'zi:k Antares R1, large
|
|
Battery
|
Bosch PowerTube, internal
|
|
Headset
|
ACROS custom for 1.5" head tube, angular contact bearings 40mm x 52mm x 7mm, internal cable routing
|
|
Seatpost
|
RockShox Reverb Stealth AXS, Travel: 125mm on S, 150mm on M/L, 170mm on XL
|
|
Handlebar
|
ONOFF Krypton Carbon 0.5, 780mm, 12.5mm rise, 9° backsweep, 5° upsweep, 31.8mm barbore
|
|
Brake lever
|
Shimano XTR
|
|
Brakes
|
Shimano XTR BR-M9120
385 (BL-M9120) g
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
e*thirteen
|
|---|---|
|
Motor
|
Bosch Performance CX, 4th generation
|
|
Shifter
|
SRAM Eagle AXS, trigger, 12-speed
|
|
Chain guide
|
Top only
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Rims
|
DT Swiss HXC1200 Carbon SPLINE 29, 30mm internal width, tubeless ready, 28 spokes
|
|---|---|
|
Tires
|
Maxxis Rekon 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead
|
|
Spokes
|
DT Swiss Hybrid, straight pull
|
|
Rear hub
|
Front: DT Swiss 240, 15mm x 110mm, centerlock, Rear: DT Swiss 240, 12mm x 148mm, centerlock, 24Z ratchet system
|
|
Front hub
|
Front: DT Swiss 240, 15mm x 110mm, centerlock, Rear: DT Swiss 240, 12mm x 148mm, centerlock, 24Z ratchet system
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
602,0
|
622,0
|
647,0
|
667,0
|
|
d
Head tube length
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1222,0
|
1242,0
|
1262,0
|
1282,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
29,0
|
29,0
|
29,0
|
29,0
|
|
k
Stack height
|
619,0
|
619,0
|
637,0
|
637,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
