Mondraker Dune Carbon R 2018

MTB Enduro
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

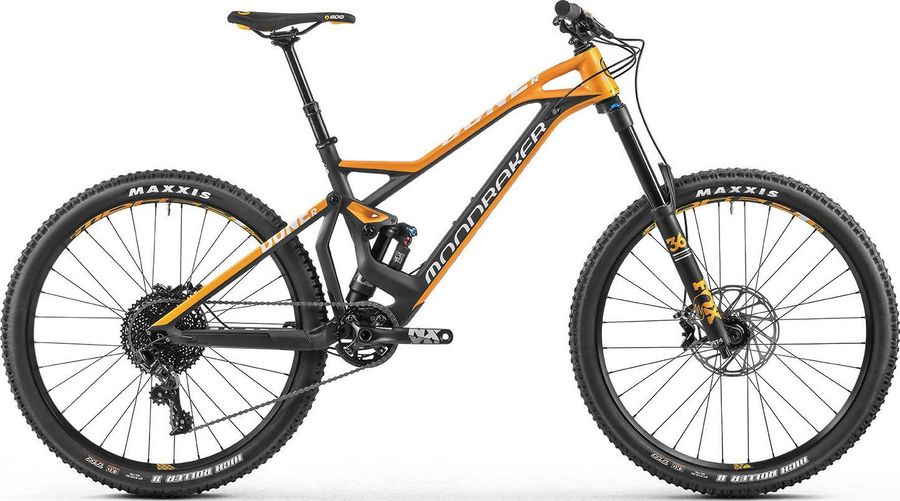

Mondraker Dune Carbon R 2018

About the Mondraker Dune Carbon R 2018

The Mondraker Dune Carbon R 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Mondraker Dune Carbon R 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp
Saddle
SDG Circuit MTN, high-density PU, cordura protection, chromium rails
Headset
Onoff Titan, internally tapered, ACB sealed bearings
Seatpost
Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel
Handlebar
Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
SRAM Guide R, tool-free reach adjust, ambidextrous lever mount
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM NX16000, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
Shifter
SRAM Trigger NX1, 11-speed, Exact actuation, Zero Loss technology
Bottom bracket
SRAM GXP XR, sealed bearings, 73mm BSA
Front derailleur
N/A (1x-specific)
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
Sunrace CSMS8 11-46T
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Carbon Fiber
Front suspension
Fox 36 Float Performance
Rear suspension
Fox Float X2 Performance
Wheels
Rims
MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical
Tires
Maxxis High Roller II, tubeless ready, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.3"
Spokes
CN round stainless steel
Rear hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 142x12mm
Front hub
Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 142x12mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
c
Top tube length
607,0
627,0
652,0
670,0
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1195,0
1215,0
1240,0
1262,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
k
Stack height
593,0
593,0
603,0
610,0
l
Reach
449,0
469,0
490,0
505,0
m
Standover height
-
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
-
-
-
-
