Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
170mm
Rear travel
170mm

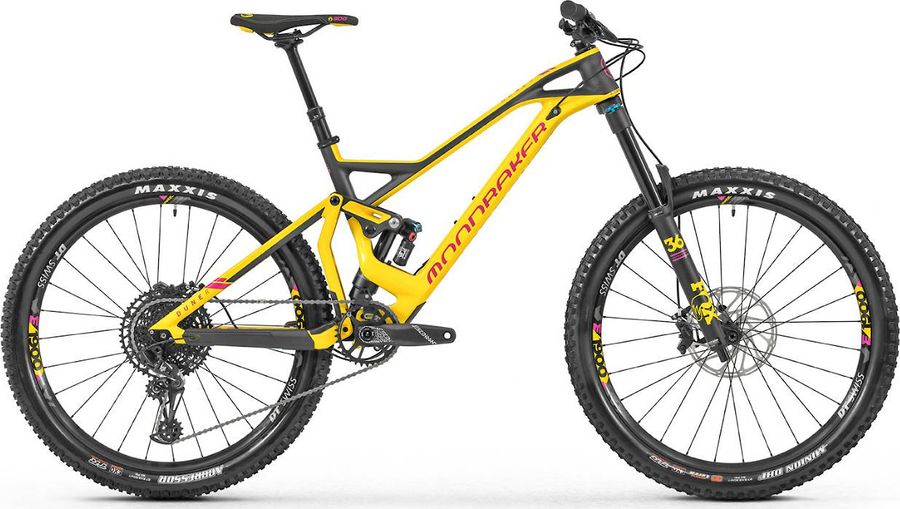

About the Mondraker Dune Carbon R 2019
The Mondraker Dune Carbon R 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,3 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm clamp
|
|---|---|
|
Saddle
|
SDG Fly MTN, PU foam, steel rail, cordura protection
|
|
Headset
|
Onoff Saturn, tapered head tube, ACB sealed bearings
|
|
Seatpost
|
Onoff Pija dropper internal, S: 337mm length x 100mm travel, M: 387mm length x 125mm travel, L/XL: 425mm length x 150mm travel
|
|
Handlebar
|
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
|
|
Brake lever
|
SRAM Code R, tool-free reach adjust
|
|
Brakes
|
SRAM Code R
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ Descendant 6K Eagle, 12-speed, boost, DUB axle, 170mm length (S/M), 175mm length (L/XL)
|
|---|---|
|
Shifter
|
SRAM Trigger NX Eagle, 12-speed, X-Actuation 1:1
|
|
Bottom bracket
|
SRAM DUB, sealed bearings, 73mm BSA
|
|
Front derailleur
|
Dedicated 1x drivetrain design
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rear suspension
|
Fox Float X2 Performance
|
|
Rims
|
DT Swiss E1900 Spline 27.5, 30mm internal width, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead Rear: Maxxis Aggresor 27.5" x 2.5", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
|
|
Spokes
|
DT Swiss Champion, straight pull
|
|
Rear hub
|
Front: DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt
|
|
Front hub
|
Front: DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
607,0
|
627,0
|
652,0
|
670,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1182,0
|
1202,0
|
1227,0
|
1247,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
1,0
|
1,0
|
1,0
|
1,0
|
|
k
Stack height
|
594,0
|
594,0
|
603,0
|
612,0
|
|
l
Reach
|
442,0
|
462,0
|
482,0
|
500,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
354,0
|
354,0
|
354,0
|
354,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
