Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

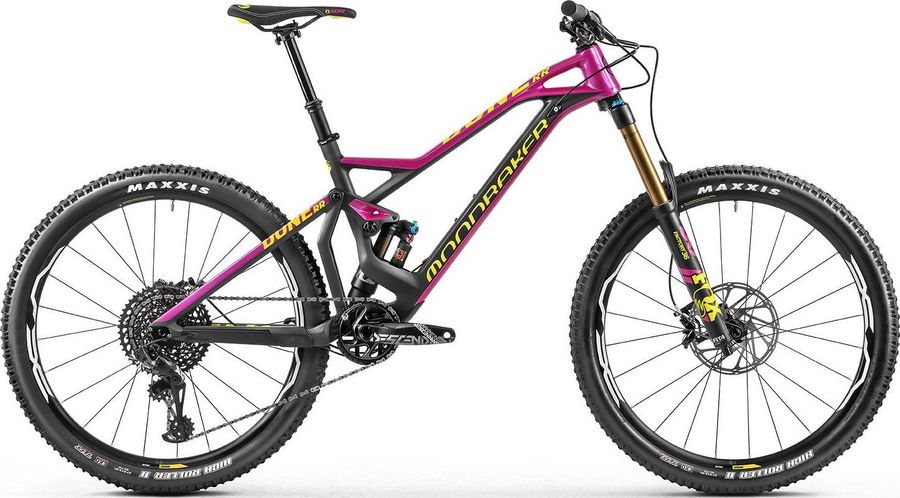

About the Mondraker Dune Carbon RR 2018
The Mondraker Dune Carbon RR 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 35mm clamp
|
|---|---|
|
Saddle
|
SDG Circuit MTN, high-density PU, cordura protection, chromium rails
|
|
Headset
|
Onoff Titan, internally tapered, ACB sealed bearings
|
|
Seatpost
|
FOX Transfer Performance Elite internal, S: 365mm length x 100mm travel, M: 406mm length x 125mm travel, L/XL: 456mm length x 150mm travel
|
|
Handlebar
|
Onoff Stoic Carbon, 13mm rise, 780mm width, 9° backsweep, 5° upsweep, 35mm clamp
|
|
Brake lever
|
SRAM Guide R, tool-free reach adjust, ambidextrous lever mount
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
Truvativ Descendant 7k Eagle, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
|
|---|---|
|
Shifter
|
SRAM Trigger GX Eagle, 12-speed, X-Actuation, Zero Loss technology
|
|
Bottom bracket
|
SRAM GXP XR, sealed bearings, 73mm BSA
|
|
Front derailleur
|
N/A (1x-specific)
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle AXS
12s
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
Mavic XA Elite, 25mm internal width, hookless, tubeless ready, 24 hole
|
|---|---|
|
Tires
|
Maxxis High Roller II, tubeless ready, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.3"
|
|
Spokes
|
Mavic steel, straight pull, profiled, double butted
|
|
Rear hub
|
Front: Mavic XA Elite, IS 6-bolt, 110x15mm, Rear: Mavic XA Elite, IS 6-bolt, ITS4, 4 ratchets, XD driver, 142x12mm
|
|
Front hub
|
Front: Mavic XA Elite, IS 6-bolt, 110x15mm, Rear: Mavic XA Elite, IS 6-bolt, ITS4, 4 ratchets, XD driver, 142x12mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
|
c
Top tube length
|
607,0
|
627,0
|
652,0
|
670,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1195,0
|
1215,0
|
1240,0
|
1262,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
5,0
|
5,0
|
5,0
|
5,0
|
|
k
Stack height
|
593,0
|
593,0
|
603,0
|
610,0
|
|
l
Reach
|
449,0
|
469,0
|
490,0
|
505,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
