Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

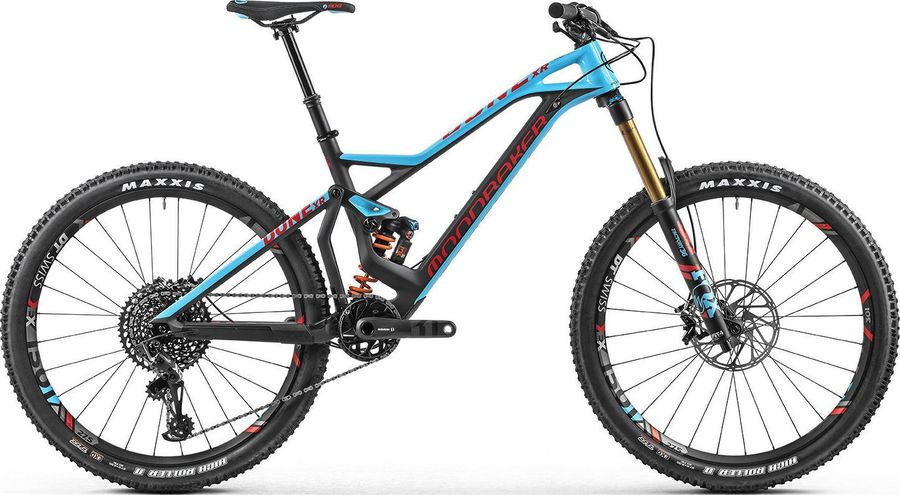

About the Mondraker Dune Carbon XR 2018
The Mondraker Dune Carbon XR 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 35mm clamp
|
|---|---|
|
Saddle
|
SDG Circuit MTN Ti, high-density PU, cordura protection, titanium rails
|
|
Headset
|
Onoff Titan, internally tapered, ACB sealed bearings
|
|
Seatpost
|
FOX Transfer Performance Elite internal, S: 365mm length x 100mm travel, M: 406mm length x 125mm travel, L/XL: 456mm length x 150mm travel
|
|
Handlebar
|
Onoff Stoic Carbon, 13mm rise, 780mm width, 9° backsweep, 5° upsweep, 35mm clamp
|
|
Brake lever
|
SRAM Guide RS, SwingLink technology, tool-free reach adjust, ambidextrous lever mount
|
|
Brakes
|
SRAM Guide RS
Hydraulic
384 g
|
|
|
|
|
Crankset
|
SRAM X1 Eagle carbon, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
|
|---|---|
|
Shifter
|
SRAM Trigger X01 Eagle, carbon, 12-speed, X-Actuation, Zero Loss technology
|
|
Bottom bracket
|
SRAM GXP XR, sealed bearings, 73mm BSA
|
|
Front derailleur
|
N/A (1x-specific)
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle AXS
12s
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox DHX2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss EX1501 Spline One, 30mm internal width, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Maxxis High Roller II, tubeless ready, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.3"
|
|
Spokes
|
DT Swiss competition, straight pull
|
|
Rear hub
|
Front: DT Swiss Spline One 240s, 6-bolt, 110x15mm, Rear: DT Swiss Spline One 240s, 6-bolt, 36 tooth ratchet system, XD driver, 142x12mm
|
|
Front hub
|
Front: DT Swiss Spline One 240s, 6-bolt, 110x15mm, Rear: DT Swiss Spline One 240s, 6-bolt, 36 tooth ratchet system, XD driver, 142x12mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
|
c
Top tube length
|
607,0
|
627,0
|
652,0
|
670,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1195,0
|
1215,0
|
1240,0
|
1262,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
5,0
|
5,0
|
5,0
|
5,0
|
|
k
Stack height
|
593,0
|
593,0
|
603,0
|
610,0
|
|
l
Reach
|
449,0
|
469,0
|
490,0
|
505,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
