Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
170mm
Rear travel
170mm

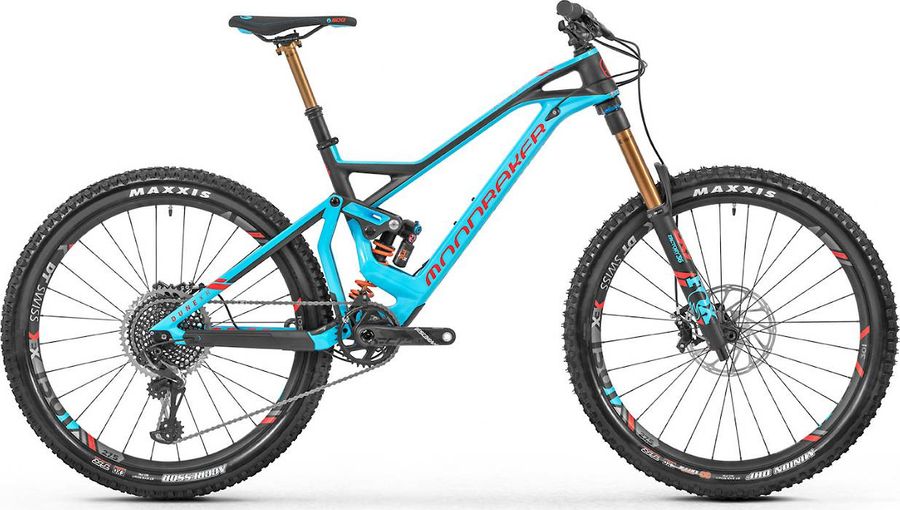

About the Mondraker Dune Carbon XR 2019
The Mondraker Dune Carbon XR 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG 30mm, 6061 forged alloy, 35mm clamp
|
|---|---|
|
Saddle
|
SDG Fly MTN, light PU foam, titanium rail, cordura protection
|
|
Headset
|
Onoff Titan, tapered head tube, ACB sealed bearings
|
|
Seatpost
|
FOX Transfer Factory Kashima, internal, S: 365mm length x 100mm travel, M: 406mm length x 125mm travel, L/XL: 456mm length x 150mm travel
|
|
Handlebar
|
Onoff Stoic Carbon, 12mm rise, 780mm width, 9º backsweep, 5º upsweep, 35mm clamp
|
|
Brake lever
|
SRAM Code RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ Descendant carbon Eagle, 12-speed, boost, DUB axle, 170mm length (S/M), 175mm length (L/XL)
|
|---|---|
|
Shifter
|
SRAM Trigger X01 Eagle, 12-speed, X-Actuation
|
|
Bottom bracket
|
SRAM DUB BSA, sealed bearings, 73mm BSA
|
|
Front derailleur
|
N/A, Dedicated 1x drivetrain design
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox DHX2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss EX1501 Spline One 27.5, 30mm internal width, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead Rear: Maxxis Aggressor 27.5" x 2.5", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
|
|
Spokes
|
DT Swiss competition, straight pull
|
|
Rear hub
|
Front: DT Swiss 240, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 240, 12mm x 148mm, 36-tooth Ratchet system, IS 6-bolt, XD freehub
|
|
Front hub
|
Front: DT Swiss 240, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 240, 12mm x 148mm, 36-tooth Ratchet system, IS 6-bolt, XD freehub
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
607,0
|
627,0
|
652,0
|
670,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1182,0
|
1202,0
|
1227,0
|
1247,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
1,0
|
1,0
|
1,0
|
1,0
|
|
k
Stack height
|
594,0
|
594,0
|
603,0
|
612,0
|
|
l
Reach
|
442,0
|
462,0
|
482,0
|
500,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
354,0
|
354,0
|
354,0
|
354,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
