Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,9 kg
Front travel
170mm
Rear travel
170mm

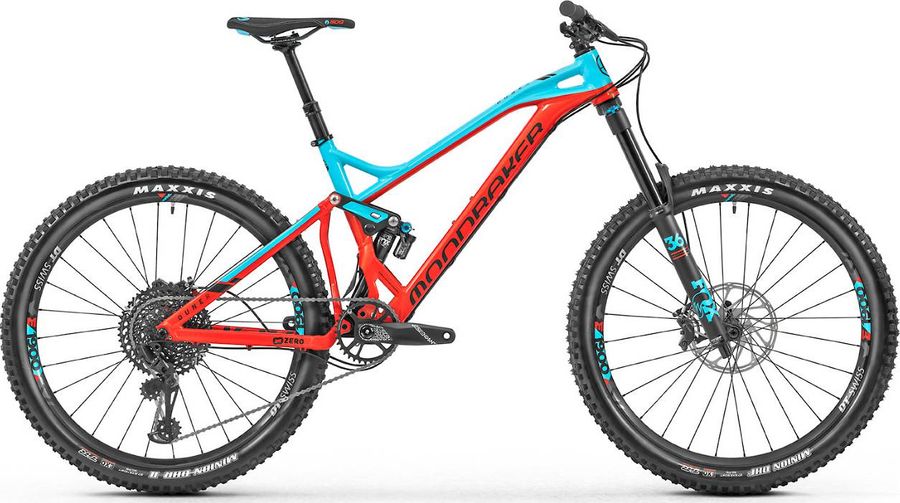

About the Mondraker Dune R 2019
The Mondraker Dune R 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm clamp
|
|---|---|
|
Saddle
|
SDG Fly MTN, PU foam, steel rail, cordura protection
|
|
Headset
|
Onoff Saturn, tapered head tube, ACB sealed bearings
|
|
Seatpost
|
Onoff Pija dropper, internal, diameter, S: 337 length x 100mm travel, M size 387 length x 125mm travel, L/XL size: 425 length x 150mm travel
|
|
Handlebar
|
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
|
|
Brake lever
|
SRAM Code R, tool-free reach adjust
|
|
Brakes
|
SRAM Code R
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ Descendant 6K Eagle, 12-speed, boost, DUB axle, 170mm length (S/M), 175mm length (L/XL)
|
|---|---|
|
Shifter
|
SRAM Trigger GX Eagle, 12-speed, X-Actuation
|
|
Bottom bracket
|
SRAM DUB, sealed bearings, 73mm BSA
|
|
Front derailleur
|
Dedicated 1x drivetrain design
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance EVOL
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
DT Swiss E1900 Spline 27.5", 30mm internal width, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 27.5"x2.4" WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
|
|
Spokes
|
DT Swiss Champion, straight pull
|
|
Rear hub
|
DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt, XD freehub
|
|
Front hub
|
DT Swiss 370, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 370, 12mm x 148mm, IS 6-bolt, XD freehub
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
607,0
|
633,0
|
656,0
|
677,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1187,0
|
1212,0
|
1237,0
|
1261,0
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
8,0
|
8,0
|
8,0
|
8,0
|
|
k
Stack height
|
592,0
|
592,0
|
600,0
|
609,0
|
|
l
Reach
|
442,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
347,0
|
347,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
