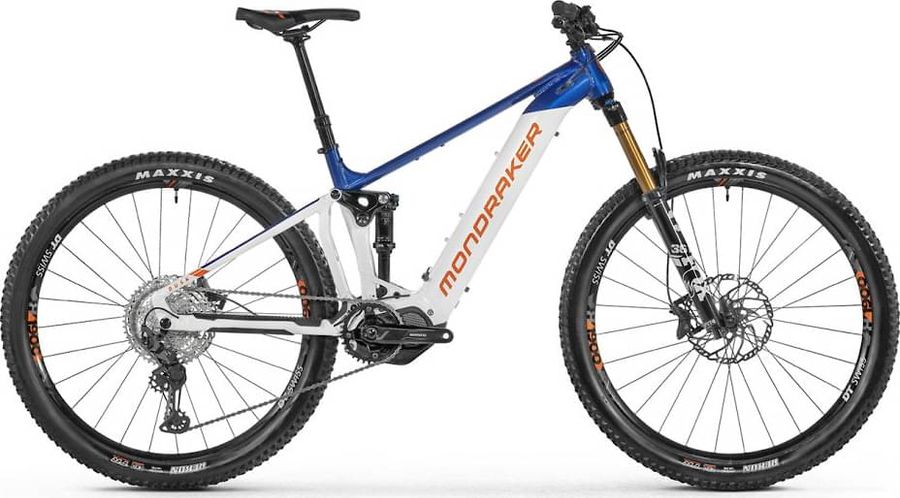

Mondraker Dusk RR 2021
The Mondraker Dusk RR 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23 kg
Front travel
160mm
Rear travel
150mm
About the Mondraker Dusk RR 2021
The Mondraker Dusk RR 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Twin, single lock-on, 135mm length
|
|---|
|
Steam
|
Onoff Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp, 0° rise
|
|---|---|
|
Saddle
|
Mondraker e-MTB custom
|
|
Battery
|
Simplo, integrated, non-removable, Optional external battery: Simplo 360 Wh
|
|
Headset
|
Onoff Saturn, sealed angular contact bearings
|
|
Seatpost
|
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
|
|
Handlebar
|
Onoff Sulfur 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
|
|
Brake lever
|
Shimano Deore M6100, alloy lever, SERVO WAVE, tooled reach adjust
|
|
Brakes
|
Shimano BR-M6120
Hydraulic disc brake
4 piston
|
|
SM-RT56* SM-RT64 SM-RT66 |
|
|
Crankset
|
Shimano STEPS EM600, 165mm length
|
|---|---|
|
Motor
|
Shimano STEPS EP800
|
|
Shifter
|
Shimano Deore M6100, 12-speed, RAPIDFIRE+
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
|
|---|---|
|
Tires
|
Maxxis Rekon, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.6"
|
|
Spokes
|
DT Swiss Hybrid, straight-pull
|
|
Rear hub
|
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and MICRO SPLINE driver
|
|
Front hub
|
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and MICRO SPLINE driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
450,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
602,0
|
622,0
|
647,0
|
667,0
|
|
d
Head tube length
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1222,0
|
1242,0
|
1262,0
|
1282,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
38,0
|
38,0
|
38,0
|
38,0
|
|
k
Stack height
|
619,0
|
619,0
|
637,0
|
637,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
336,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
