Mondraker e-Crafty R+ 2018

E-Bike
MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,5 kg
Front travel
160mm
Rear travel
140mm

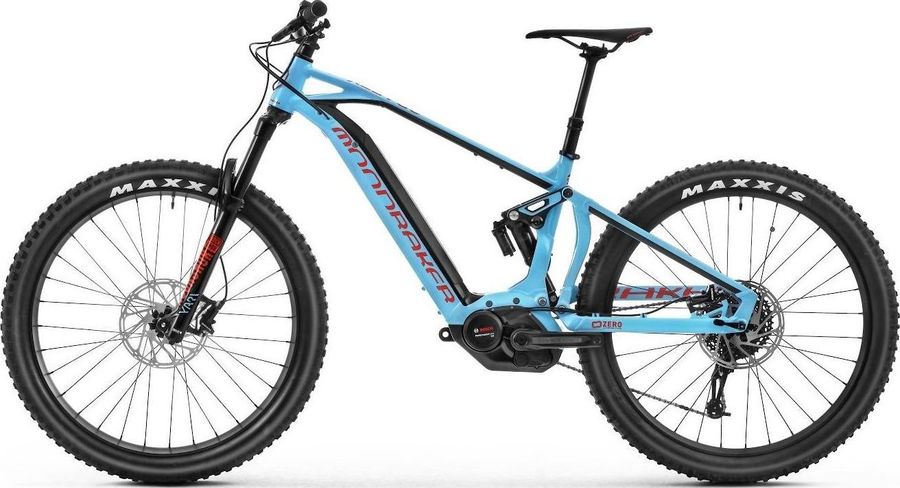

Mondraker e-Crafty R+ 2018

About the Mondraker e-Crafty R+ 2018

The Mondraker e-Crafty R+ 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,5 kg.

Features

The Mondraker e-Crafty R+ 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond Lock-on, 130mm
Pedals
None included
Components
Steam
Onoff Stoic FG, forged 6061 alloy, 30mm length, 31.8mm clamp
Saddle
Mondraker
Battery
Bosch PowerTube
Headset
Onoff Saturn
Seatpost
Onoff Pija, 100mm drop (S), 125mm drop (M-XL)
Handlebar
Mondraker Custom Design 1.0, 780mm width
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
RaceFace Aeffect
Motor
Bosch Performance Line CX
Shifter
SRAM GX, 10-speed, Zero Loss technology, Exact actuation
Cassette
Sunrace 10-speed
Chain
SRAM PC-1031
Chain connector
PowerLock
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links
Color inner link
Grey
Color outer link
Grey, Silver
Compat speed
10s
Inner link finish
Polished
Model
CN-1031-A1
Name
PC-1031 Chain
Outer link finish
Nickel, Polished
Pin variant
Solid Pin
Rear derailleur
SRAM GX
Frameset
Frame
Aluminum
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MDK-EP1 TLR ASY, 35mm internal width, tubeless ready, 32 hole
Tires
Front: Maxxis Minion DHF, 2.8", tubeless ready, Dual compound, Exo Protection, 60TPI, folding, Rear: High Roller 27 II, 2.8", tubeless ready, Dual compound, Exo Protection, 60TPI, folding
Spokes
CN stainless
Rear hub
Front: MDK GW, Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: MDK GW, Boost 12mm x 148mm, sealed cartridge bearings, 6 bolt
Front hub
Front: MDK GW, Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: MDK GW, Boost 12mm x 148mm, sealed cartridge bearings, 6 bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
500,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
607,0
637,0
662,0
685,0
d
Head tube length
100,0
120,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1232,0
1265,0
1293,0
1317,0
i
Chainstay length
472,0
472,0
472,0
472,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
597,0
615,0
633,0
642,0
l
Reach
447,0
472,0
492,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
