Mondraker e-Crusher Carbon R+ 2018

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,8 kg
Front travel
160mm
Rear travel
150mm

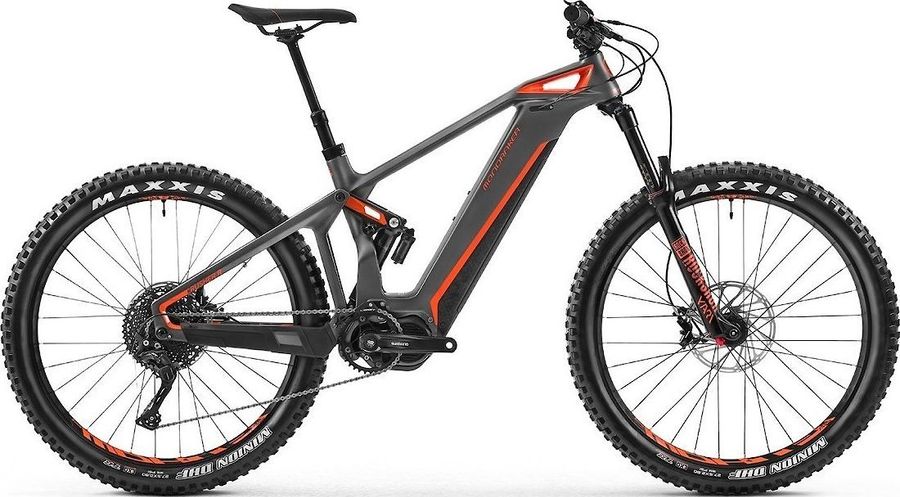

Mondraker e-Crusher Carbon R+ 2018

About the Mondraker e-Crusher Carbon R+ 2018

The Mondraker e-Crusher Carbon R+ 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,8 kg.

Features

The Mondraker e-Crusher Carbon R+ 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond Lock-on, 130mm
Pedals
None included
Components
Steam
Onoff Stoic FG, forged 6061 alloy, 30mm length, 35mm clamp
Saddle
Fi'zi:k Gobi M7 VS MG
Battery
Shimano BT-E8020 integrated battery
Headset
Onoff Saturn
Seatpost
Onoff Pija, 100mm drop (S), 125mm drop (M-XL)
Handlebar
Mondraker Custom Design 1.0, 780mm width
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano FC-E8000
Motor
Shimano e8000
Shifter
Shimano XT SL-M8000R, 11-speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Sunrace CSMS8 11-46T
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MDK-EP1 35 TLR 27.5+
Tires
Front: Maxxis Minion DHF 2.8", tubeless ready, Dual compound, EXO Protection, 60TPI, folding, Rear: High Roller 27 II 2.8", tubeless ready, Dual compound, EXO Protection, 60TPI, folding
Spokes
CN stainless
Rear hub
Front: MDK GW, Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: MDK GW, Boost 12mm x 148mm, sealed cartridge bearings, 6 bolt
Front hub
Front: MDK GW, Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: MDK GW, Boost 12mm x 148mm, sealed cartridge bearings, 6 bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
605,0
633,0
655,0
681,0
d
Head tube length
100,0
100,0
115,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1198,0
1223,0
1249,0
1278,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
606,0
606,0
620,0
634,0
l
Reach
438,0
463,0
483,0
503,0
m
Standover height
-
-
-
-
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
-
-
-
-
