Mondraker e-Factor + 2018

E-Bike
MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,3 kg

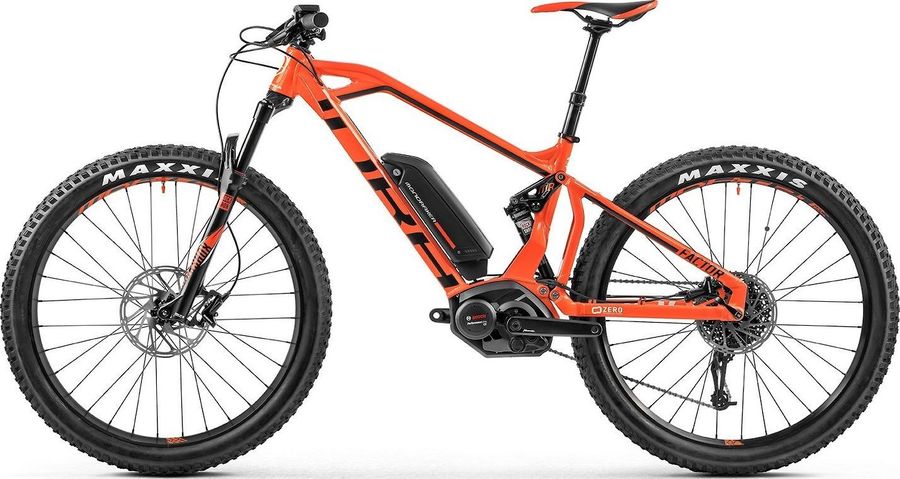

Mondraker e-Factor + 2018

About the Mondraker e-Factor + 2018

The Mondraker e-Factor + 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 22,3 kg.

Features

The Mondraker e-Factor + 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond Lock-on, 130mm
Pedals
None included
Components
Steam
Onoff Stoic FG, forged 6061 alloy, 30mm length, 31.8mm clamp
Saddle
Mondraker Factor +
Battery
Bosch PowerTube
Headset
Onoff Saturn
Seatpost
Onoff Pija, 100mm drop (S), 125mm drop (M-XL)
Handlebar
Mondraker Custom Design 0.5, 760mm width
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Miranda Delta
Motor
Bosch Performance Line CX
Shifter
SRAM X5, 10-speed, trigger
Cassette
Sunrace 10-speed
Chain
SRAM PC-1031
Chain connector
PowerLock
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links
Color inner link
Grey
Color outer link
Grey, Silver
Compat speed
10s
Inner link finish
Polished
Model
CN-1031-A1
Name
PC-1031 Chain
Outer link finish
Nickel, Polished
Pin variant
Solid Pin
Rear derailleur
SRAM GX
Frameset
Frame
Aluminum
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Wheels
Rims
NEW MDK-EP1 Asy 35 TLR
Tires
Maxxis Rekon 2.8", tubeless ready, Dual compound, Exo-protection, 60TPI, folding
Spokes
CN stainless
Rear hub
MDK Pro II, Boost front and rear
Front hub
MDK Pro II, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
604,0
629,0
652,0
676,0
d
Head tube length
100,0
100,0
115,0
130,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1208,0
1234,0
1259,0
1285,0
i
Chainstay length
472,0
472,0
472,0
472,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
583,0
583,0
597,0
611,0
l
Reach
447,0
472,0
492,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
