Mondraker e-Vantage R+ 2018

E-Bike
MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
140mm

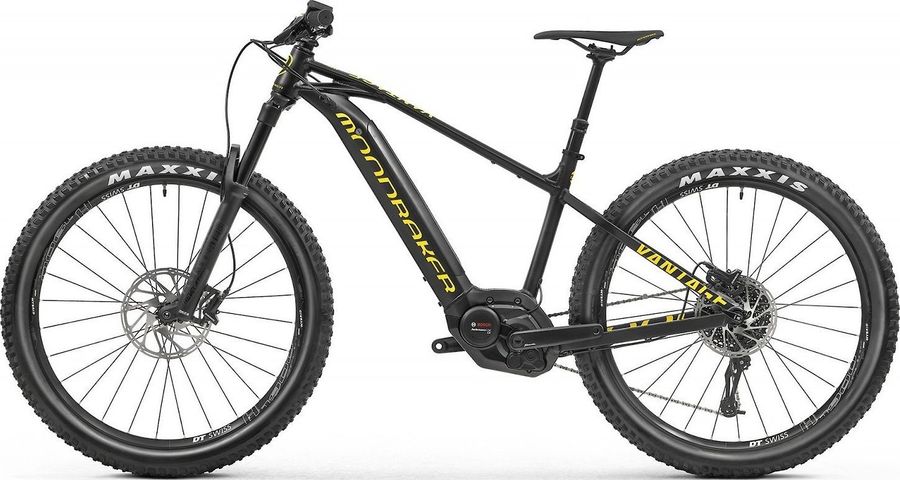

Mondraker e-Vantage R+ 2018

About the Mondraker e-Vantage R+ 2018

The Mondraker e-Vantage R+ 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready.

Features

The Mondraker e-Vantage R+ 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond Lock-on, 130mm
Pedals
None included
Components
Steam
Onoff Stoic FG, forged 6061 alloy, 30mm length, 31.8mm clamp
Saddle
Mondraker
Battery
Bosch PowerTube
Headset
Onoff Saturn
Seatpost
Onoff Pija, 100mm drop (S), 125mm drop (M-XL)
Handlebar
Mondraker Custom Design 1.0, 780mm width
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Miranda Delta
Motor
Bosch Performance Line CX system
Shifter
SRAM X5, 10-speed
Cassette
Sunrace 10-speed
Chain
SRAM PC-1031
Chain connector
PowerLock
Chain length links
100 links, 102 links, 104 links, 106 links, 108 links, 110 links, 112 links, 114 links, 116 links, 118 links
Color inner link
Grey
Color outer link
Grey, Silver
Compat speed
10s
Inner link finish
Polished
Model
CN-1031-A1
Name
PC-1031 Chain
Outer link finish
Nickel, Polished
Pin variant
Solid Pin
Rear derailleur
SRAM GX
Frameset
Frame
Aluminum
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss H1900 Spline, 35mm internal width, e-bike specific, tubeless ready, 28 hole
Tires
Maxxis Rekon, 2.8", tubeless ready, Dual compound, EXO, 60TPI, folding
Spokes
Hybrid system, stainless steel
Rear hub
DT Swiss 370, Boost front and rear, 6-bolt
Front hub
DT Swiss 370, Boost front and rear, 6-bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
612,0
642,0
667,0
702,0
d
Head tube length
100,0
120,0
140,0
150,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1228,0
1261,0
1289,0
1313,0
i
Chainstay length
472,0
472,0
472,0
472,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
592,0
611,0
629,0
638,0
l
Reach
451,0
476,0
496,0
516,0
m
Standover height
-
-
-
-
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
-
-
-
-
