Mondraker F-Play 26 2021

E-Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
120mm
Rear travel
120mm

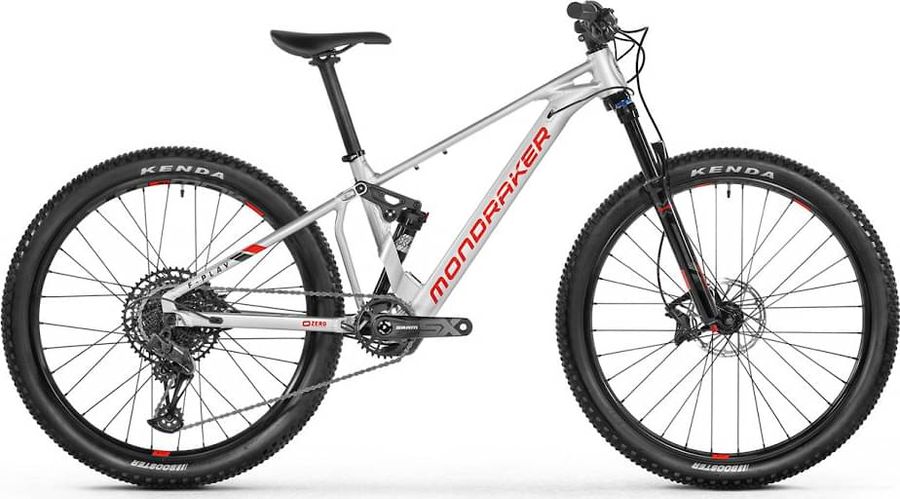

Mondraker F-Play 26 2021

About the Mondraker F-Play 26 2021

The Mondraker F-Play 26 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 16,4 kg.

Features

The Mondraker F-Play 26 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Twin, single lock-on, 135mm length
Components
Steam
MDK XC, 6061 forged alloy, 35mm length, 31.8mm bar clamp, 0° rise
Saddle
SDG Fly JR
Battery
Mahle-Ebikemotion, integrated, non-removable
Headset
Onoff Saturn, sealed angular contact bearings
Seatpost
MDK XC 0-R, 6061 T6 alloy, 350mm length
Handlebar
MDK XC 1.0, 6061 alloy, 25mm rise, 680mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Brake lever
Shimano M4100, alloy, tooled reach adjust
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB, 155mm length
Motor
Mahle-Ebikemotion X-35 rear hub
Shifter
SRAM SX Eagle, 12-speed, X-ACTUATION 1:1
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
X-Fusion Velvet RL2
Rear suspension
X-Fusion O2 Pro RL
Wheels
Rims
MDK-XP1, 23mm internal width, tubeless ready, 32 hole
Tires
Kenda Booster, single compound, 30 TPI, wire bead, 26" x 2.4"
Spokes
CN round stainless steel
Rear hub
Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver
Front hub
Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver

Geometry

Size One Size
a
Seat tube length
350,0
b
Seat tube angle
76,0º
c
Top tube length
551,0
d
Head tube length
90,0
e
Head tube angle
67,0º
f
Rake
-
g
Trail
-
h
Wheelbase
1105,0
i
Chainstay length
421,0
j
Bottom bracket drop
23,0
k
Stack height
546,0
l
Reach
416,0
m
Standover height
-
x
Bottom bracket height
320,0
y
Front center
-
