Mondraker F-Podium 2020
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,49 kg
Front travel
100mm
Rear travel
100mm

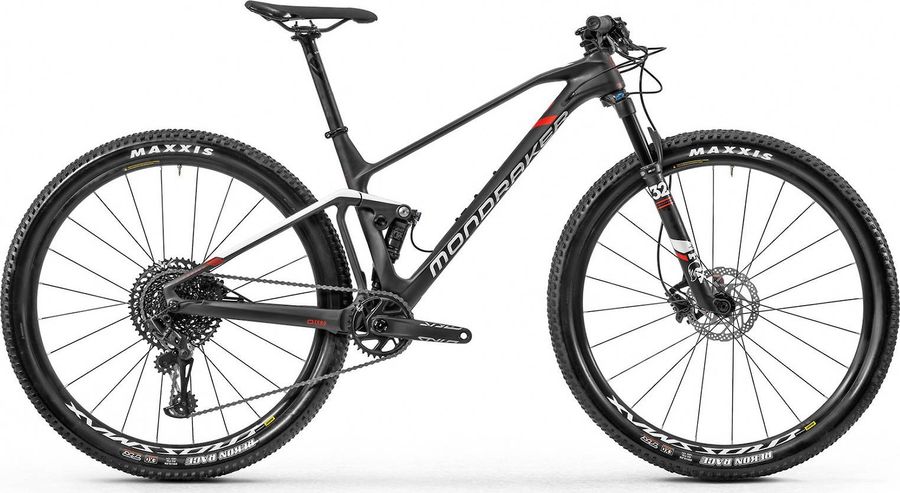

About the Mondraker F-Podium 2020
The Mondraker F-Podium 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 11,49 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
OnOff Twin Lock-on
|
|---|
|
Steam
|
Mondraker XC, -5°
|
|---|---|
|
Saddle
|
Mondraker XC Series
|
|
Headset
|
OnOff Saturn tapered ACB
|
|
Seatpost
|
OnOff Sulfur 0-R, 400mm
|
|
Handlebar
|
OnOff Sulfur 0.2, 760mm
|
|
Brake lever
|
Shimano MT501
|
|
Brakes
|
Shimano Deore BR-MT501
|
|
Crankset
|
Truvativ Stylo 7K Eagle DUB, Boost
|
|---|---|
|
Shifter
|
SRAM NX Eagle Trigger, right, 12-speed
|
|
Bottom bracket
|
SRAM DUB BSA, 73mm
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance Elite
|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
Mavic Crossmax Tubeless Boost wheelset
|
|---|---|
|
Tires
|
Maxxis Rekon Race, EXO, TR, 29x2.25"
|
|
Spokes
|
Mavic
|
|
Rear hub
|
Mavic Crossmax Tubeless Boost wheelset
|
|
Front hub
|
Mavic Crossmax Tubeless Boost wheelset
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
587,0
|
607,0
|
632,0
|
657,0
|
|
d
Head tube length
|
85,0
|
90,0
|
100,0
|
115,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1139,0
|
1160,0
|
1184,0
|
1210,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
189,0
|
189,0
|
189,0
|
189,0
|
|
k
Stack height
|
577,0
|
582,0
|
591,0
|
605,0
|
|
l
Reach
|
447,0
|
467,0
|
487,0
|
507,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
185,0
|
185,0
|
185,0
|
185,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
