Mondraker F-Podium Carbon DC R 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,7 kg
Front travel
120mm
Rear travel
100mm

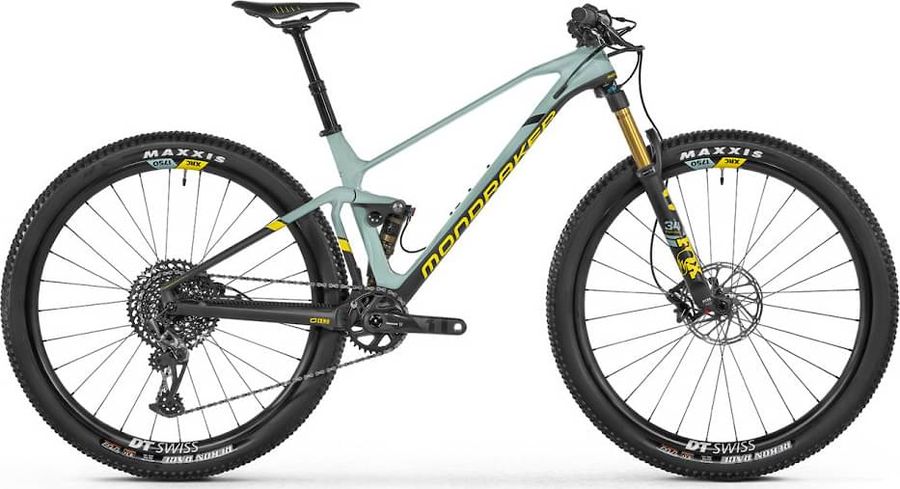

Mondraker F-Podium Carbon DC R 2021

About the Mondraker F-Podium Carbon DC R 2021

The Mondraker F-Podium Carbon DC R 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,7 kg.

Features

The Mondraker F-Podium Carbon DC R 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ONOFF Desert, 135mm length, single lock-on
Components
Steam
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 50mm (SM/MD), 60mm (LG), 70mm (XL)
Saddle
fi'zi:k Antares R7
Headset
ACROS AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD/LG/XL)
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 760mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Brake lever
SRAM Level TL, Direct Link, lever pivot bushings, tooled reach adjust
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM X1 Eagle Carbon DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Shifter
SRAM GX Eagle, 12-speed, Trigger, X-ACTUATION
Bottom bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss XRC1750 Carbon Spline, 30mm internal width, hookless, tubeless ready, 28 hole
Tires
Maxxis Rekon Race, EXO, TR, 120 TPI, folding bead, 29" x 2.35"
Spokes
DT Swiss Champion, straightpull
Rear hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and XD driver
Front hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and XD driver

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
470,0
510,0
b
Seat tube angle
75,1º
75,1º
75,1º
75,1º
c
Top tube length
590,0
610,0
636,0
661,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
66,8º
66,8º
66,8º
66,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1153,0
1174,0
1198,0
1224,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
584,0
589,0
598,0
612,0
l
Reach
437,0
457,0
477,0
497,0
m
Standover height
-
-
-
-
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
-
-
-
-
