Mondraker F-Podium Carbon RR 2021

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,1 kg
Front travel
100mm
Rear travel
100mm

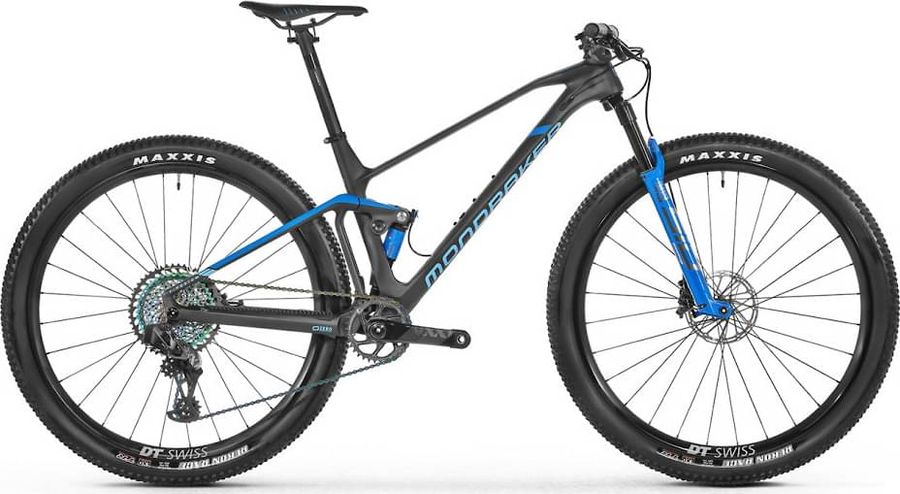

Mondraker F-Podium Carbon RR 2021

About the Mondraker F-Podium Carbon RR 2021

The Mondraker F-Podium Carbon RR 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,1 kg.

Features

The Mondraker F-Podium Carbon RR 2021 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Lizard Skins DSP 30.3
Components
Steam
ONOFF Helium, 7075 CNC alloy, +/-5° rise, 31.8mm bar clamp, Length: 50mm (SM/MD), 60mm (LG), 70mm (XL)
Saddle
fi'zi:k Antares R7
Headset
ACROS AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower
Seatpost
ONOFF Helium Carbon 0-R, 400mm length
Handlebar
ONOFF Helium Carbon 0.2, 4.8mm rise, 760mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Brake lever
SRAM Level Ultimate, carbon lever, titanium hardware, Direct Link, lever pivot bearings, tooled reach adjust
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle Carbon DUB, 170mm length (SM), 175mm length (MD/LG/XL)
Shifter
SRAM Eagle AXS Controller, 12-speed, electronic wireless
Bottom bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XX1 XG1299 Eagle
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox SIDluxe Ultimate 231 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-ULT-A1
Name
SIDLuxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
231
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Wheels
Rims
DT Swiss XRC1200 Carbon Spline, 30mm internal width, hookless, tubeless ready, 28 hole
Tires
Maxxis Rekon Race, EXO, TR, 120 TPI, folding bead, 29" x 2.35"
Spokes
DT Swiss Aerolite and DT Swiss Aero Comp, straightpull
Rear hub
DT Swiss 180, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth Ratchet EXP freehub and XD driver
Front hub
DT Swiss 180, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 36 tooth Ratchet EXP freehub and XD driver

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
470,0
510,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
c
Top tube length
587,0
607,0
632,0
657,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1139,0
1160,0
1184,0
1210,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
49,0
49,0
49,0
49,0
k
Stack height
577,0
582,0
591,0
605,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
