Mondraker F-Podium R 2020

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,59 kg
Front travel
100mm
Rear travel
100mm

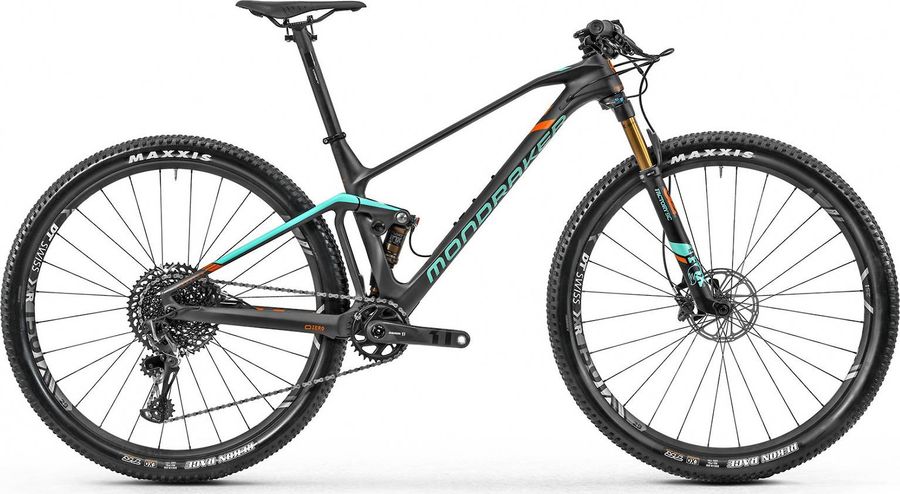

Mondraker F-Podium R 2020

About the Mondraker F-Podium R 2020

The Mondraker F-Podium R 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,59 kg.

Features

The Mondraker F-Podium R 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
OnOff Desert Lock-on
Components
Steam
Mondraker XC, -5°
Saddle
fi'zi:k Antares R7
Headset
OnOff Saturn tapered ACB
Seatpost
OnOff Helium Carbon 0-R, 400mm
Handlebar
OnOff Helium Carbon 0.2, 760mm
Brake lever
SRAM Level TLM
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Carbon Eagle, 12-speed
Shifter
SRAM GX Eagle Trigger, right, 12-speed
Bottom bracket
SRAM DUB BSA, 73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 32 SC Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss XR1501 Spline One 25mm 29" wheelset
Tires
Maxxis Rekon Race, EXO, TR, 29x2.25"
Spokes
DT Competition straight pull
Rear hub
DT Swiss XR1501 Spline One 25mm 29" wheelset
Front hub
DT Swiss XR1501 Spline One 25mm 29" wheelset

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
470,0
510,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
c
Top tube length
587,0
607,0
632,0
657,0
d
Head tube length
85,0
90,0
100,0
115,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1139,0
1160,0
1184,0
1210,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
189,0
189,0
189,0
189,0
k
Stack height
577,0
582,0
591,0
605,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
185,0
185,0
185,0
185,0
y
Front center
-
-
-
-
