Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

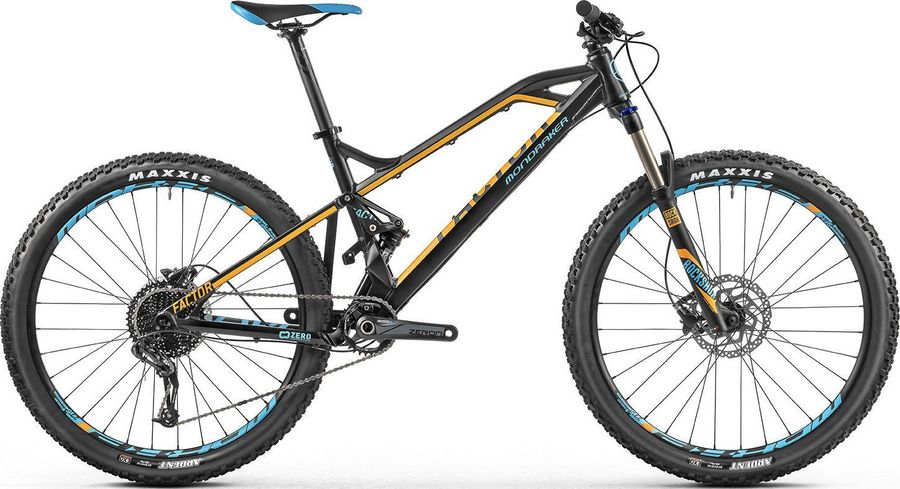

About the Mondraker Factor 2018
The Mondraker Factor 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes e tubeless ready.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Diamond, lock-on, 130mm
|
|---|
|
Steam
|
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp
|
|---|---|
|
Saddle
|
Mondraker Factor
|
|
Headset
|
Onoff Saturn, tapered
|
|
Seatpost
|
Onoff Notion 0-R 2014 T6 alloy 2D forged, 400mm length
|
|
Handlebar
|
Onoff Notion 1.0, 6061 aluminum, double tapered, 20mm rise, 760mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
|
|
Brake lever
|
Shimano M-315 hydraulic, anodized aluminum lever
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Suntour Zeron
|
|---|---|
|
Shifter
|
SRAM Trigger X5, 10-speed, 1:1 actuation
|
|
Bottom bracket
|
Suntour BSA Type
|
|
Cassette
|
Sunrace 10-speed
|
|
Chain
|
SRAM PC-1031
|
|
|
|
|
Rear derailleur
|
SRAM GX
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Front suspension
|
RockShox 30 Silver
Coil, Solo Air
|
|
|
|
|
Rims
|
MDK-XP1, 27mm internal width, tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Maxxis Ardent, single compound, 60tpi, wire bead, 27.5" x 2.4"
|
|
Spokes
|
CN round stainless steel
|
|
Rear hub
|
Front: MDK DC20, cup and cone bearings, IS 6-bolt, 9mm QR axle, Rear: MDK DC22LW, cup and cone bearings, IS 6-bolt, 9mm QR axle, interchangeable freehub
|
|
Front hub
|
Front: MDK DC20, cup and cone bearings, IS 6-bolt, 9mm QR axle, Rear: MDK DC22LW, cup and cone bearings, IS 6-bolt, 9mm QR axle, interchangeable freehub
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
612,0
|
632,0
|
657,0
|
677,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1172,0
|
1193,0
|
1219,0
|
1240,0
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
13,0
|
13,0
|
13,0
|
13,0
|
|
k
Stack height
|
558,0
|
567,0
|
576,0
|
585,0
|
|
l
Reach
|
451,0
|
468,0
|
490,0
|
508,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
