Mondraker Factor 26 2021

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
26"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
120mm
Rear travel
120mm

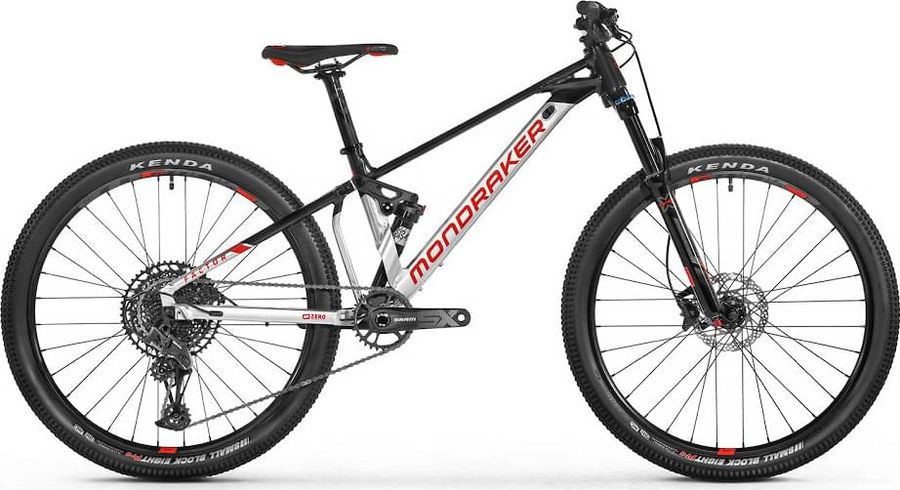

Mondraker Factor 26 2021

About the Mondraker Factor 26 2021

The Mondraker Factor 26 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 13,6 kg.

Features

The Mondraker Factor 26 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Slater JR, 19mm diameter, 115mm length
Components
Steam
ONOFF Sulfur FG, 6061 alloy, 30mm length, 0° rise, 31.8mm bar clamp
Saddle
SDG Fly JR
Headset
ONOFF Saturn, ACB sealed bearings
Seatpost
ONOFF Sulfur 0-R, 3D-forged 6061-T6 alloy, 400mm length
Handlebar
SDG Slater, double-butted 6061 alloy, 20mm rise, 650mm width, 5° backsweep, 8° upsweep, 31.8mm clamp diameter
Brake lever
Shimano M4100, alloy lever, tooled reach adjust
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB, 155mm length
Shifter
SRAM SX Eagle, 12-speed, Trigger, X-ACTUATION
Bottom bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
X-Fusion Velvet RL2
Rear suspension
X-Fusion O2 Pro RL
Wheels
Rims
MDK-XP1 TLR, 23mm internal width, tubeless ready, 32 hole
Tires
Kenda Booster, single compound, 30 TPI, wire bead, 26" x 2.4"
Spokes
CN round stainless steel
Rear hub
Front: Formula DC20LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, Rear: Formula DC22LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, HG driver
Front hub
Front: Formula DC20LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, Rear: Formula DC22LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, HG driver

Geometry

Size One Size
a
Seat tube length
350,0
b
Seat tube angle
76,0º
c
Top tube length
551,0
d
Head tube length
90,0
e
Head tube angle
67,0º
f
Rake
-
g
Trail
-
h
Wheelbase
1106,0
i
Chainstay length
421,0
j
Bottom bracket drop
23,0
k
Stack height
546,0
l
Reach
416,0
m
Standover height
-
x
Bottom bracket height
320,0
y
Front center
-
