Mondraker Factor R 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

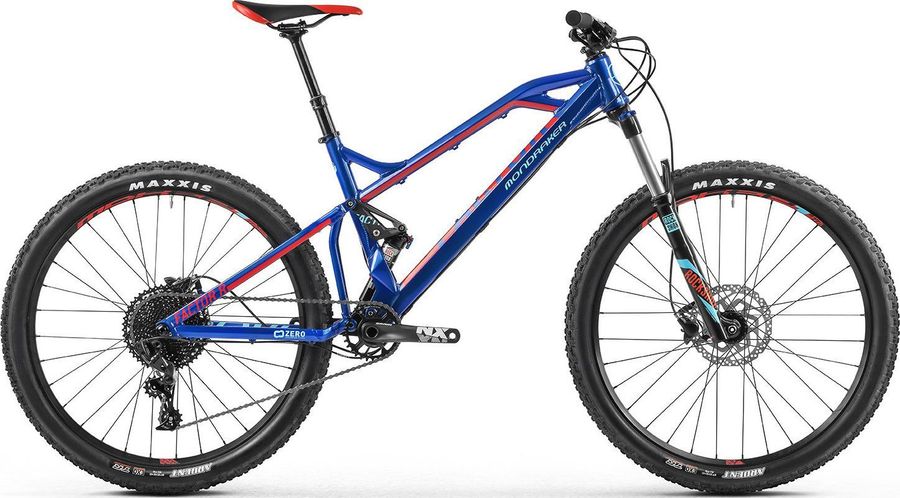

Mondraker Factor R 2018

About the Mondraker Factor R 2018

The Mondraker Factor R 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Mondraker Factor R 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp
Saddle
Mondraker Factor R
Headset
Onoff Saturn, tapered
Seatpost
Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel
Handlebar
Onoff Notion 1.0, 6061 aluminum, double tapered, 20mm rise, 760mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
Shimano M-315 hydraulic, anodized aluminum lever
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
SRAM NX16000, aluminum, 24mm axle, 170mm length (S/M), 175mm length (L/XL)
Shifter
SRAM Trigger NX1, 11-speed, Exact actuation, Zero Loss technology
Bottom bracket
SRAM GXP XR, sealed bearings, 73mm BSA
Rear derailleur
SRAM NX 1x11 X-HORIZON
Cassette
Sunrace CSMS8 11-46T
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical
Tires
Maxxis Ardent, dual compound, tubeless ready, Exo protection, 60tpi, folding, 27.5" x 2.4"
Spokes
CN round stainless steel
Rear hub
MDK GW, sealed bearings, IS 6-bolt, 110x15mm front, 148x12mm rear
Front hub
MDK GW, sealed bearings, IS 6-bolt, 110x15mm front, 148x12mm rear

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
612,0
632,0
657,0
677,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1172,0
1193,0
1219,0
1240,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
558,0
567,0
576,0
585,0
l
Reach
451,0
468,0
490,0
508,0
m
Standover height
-
-
-
-
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
-
-
-
-
