Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,1 kg
Front travel
160mm
Rear travel
150mm

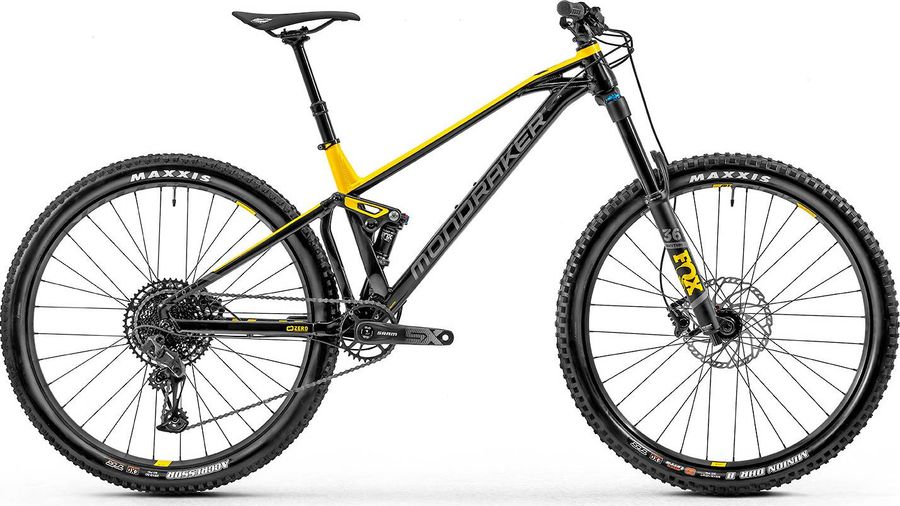

About the Mondraker Foxy 2020
The Mondraker Foxy 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 15,1 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Onoff Desert, 1lock-on, 135mm
|
|---|
|
Steam
|
Onoff Sulfur FG 30mm reach 0°, 6061 forged alloy, 31.8 mm clamp
|
|---|---|
|
Saddle
|
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
|
|
Headset
|
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
|
|
Seatpost
|
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
|
|
Handlebar
|
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
|
|
Brake lever
|
Shimano MT501
|
|
Brakes
|
Shimano Deore BR-MT501
|
|
Crankset
|
SRAM SX Eagle DUB, 170mm on S/M and 175mm on L/XL
|
|---|---|
|
Shifter
|
SRAM SX Eagle, 12-speed
|
|
Bottom bracket
|
SRAM DUB BSA
|
|
Front derailleur
|
None (1x only)
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 36 Float
|
|
Rear suspension
|
Fox Float DPX2 Performance EVOL
|
|
Rims
|
MDK-EP1 29 TLR ASY, asymmetrical, 30mm internal width, tubeless ready, 32 hole
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 2.4WT, Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead front and Maxxis Aggressor 2.3", Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead rear
|
|
Spokes
|
CN round stainless steel
|
|
Rear hub
|
MDK DC711 front and DHT rear, Boost, 6-bolt brake tab
|
|
Front hub
|
MDK DC711 front and DHT rear, Boost, 6-bolt brake tab
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
603,0
|
626,0
|
651,0
|
675,0
|
|
d
Head tube length
|
90,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1190,0
|
1219,0
|
1245,0
|
1271,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
19,0
|
19,0
|
19,0
|
19,0
|
|
k
Stack height
|
603,0
|
612,0
|
627,0
|
640,0
|
|
l
Reach
|
447,0
|
472,0
|
492,0
|
512,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
355,0
|
355,0
|
355,0
|
355,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
