Mondraker Foxy 27.5 2019

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
150mm
Rear travel
150mm

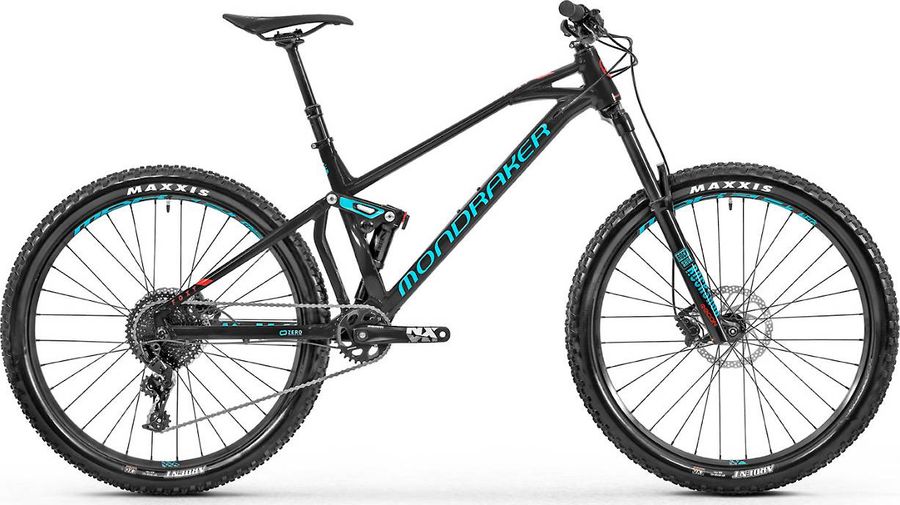

Mondraker Foxy 27.5 2019

About the Mondraker Foxy 27.5 2019

The Mondraker Foxy 27.5 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,5 kg.

Features

The Mondraker Foxy 27.5 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Diamond, lock-on, 130mm
Components
Steam
Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm clamp
Saddle
Mondraker Foxy design
Headset
Onoff Saturn, ACB sealed bearings
Seatpost
Onoff Pija Dropper, internal, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Handlebar
Mondraker double butted 6061 alloy, 25mm rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm clamp
Brake lever
Shimano MT501, servo wave, alloy lever
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
SRAM NX, 11-speed, Boost, Power Spline axle, 170mm (S/M), 175mm (L/XL)
Shifter
SRAM Trigger NX, 11-speed, X-Actuation
Bottom bracket
SRAM Power Spline, sealed bearings, 73mm
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Cassette
Sunrace 11-speed
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
MDK-EP1 27.5 TLR ASY, asymmetrical rim, 27mm internal width, tubeless ready, 32 hole
Tires
Maxxis Ardent 27.5" x 2.4", single compound, 60 TPI, wire bead front and rear
Spokes
CN round stainless steel
Rear hub
Front: MDK GW 15mm x 110mm, sealed bearings, IS 6-bolt, Rear: MDK GW 12mm x 148mm, sealed bearings, IS 6-bolt
Front hub
Front: MDK GW 15mm x 110mm, sealed bearings, IS 6-bolt, Rear: MDK GW 12mm x 148mm, sealed bearings, IS 6-bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
599,0
622,0
646,0
668,0
d
Head tube length
110,0
120,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1176,0
1199,0
1228,0
1252,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
587,0
596,0
614,0
623,0
l
Reach
452,0
472,0
492,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
-
-
-
-
