Mondraker Foxy Carbon R 2020

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,1 kg
Front travel
160mm
Rear travel
150mm

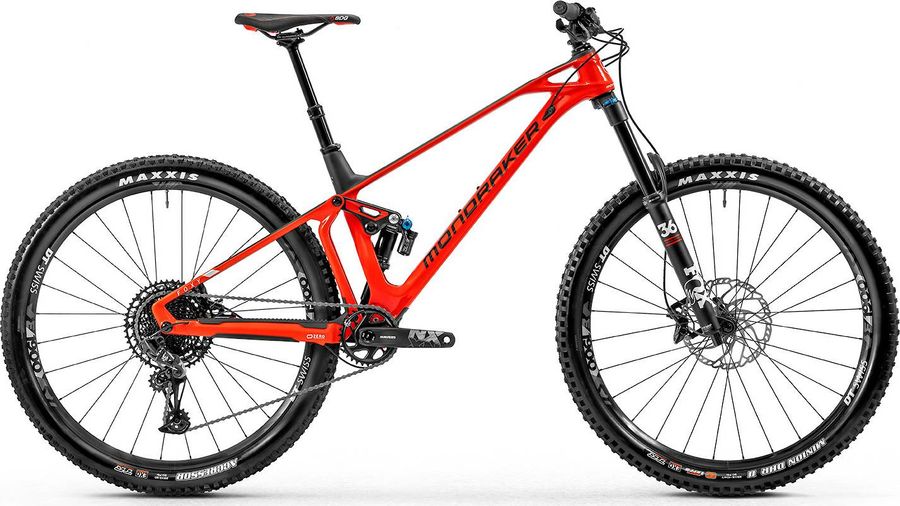

Mondraker Foxy Carbon R 2020

About the Mondraker Foxy Carbon R 2020

The Mondraker Foxy Carbon R 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 14,1 kg.

Features

The Mondraker Foxy Carbon R 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Onoff Desert, 1lock-on, 135mm
Components
Steam
Onoff Sulfur FG 30mm reach 0°, 6061 forged alloy, 31.8 mm clamp
Saddle
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
Headset
Onoff Titan, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
Seatpost
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
SRAM NX Eagle DUB, 170mm on S/M and 175mm on L/XL
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB BSA
Front derailleur
None (1x only)
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss E1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Tires
Maxxis Minion DHR II 2.4WT, Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead front and Maxxis Aggressor 2.3", Tubeless ready, 3C Maxx Terra, EXO, 60TPI, folding bead rear
Spokes
DT Swiss Champion straight pull
Rear hub
DT Swiss 370 Boost
Front hub
DT Swiss 370 Boost

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
603,0
626,0
651,0
675,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1184,0
1207,0
1233,0
1259,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
22,0
22,0
22,0
22,0
k
Stack height
602,0
611,0
625,0
639,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
352,0
352,0
352,0
352,0
y
Front center
-
-
-
-
