BikeWise

Mondraker Foxy Carbon R 2021

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
160mm
Rear travel
150mm

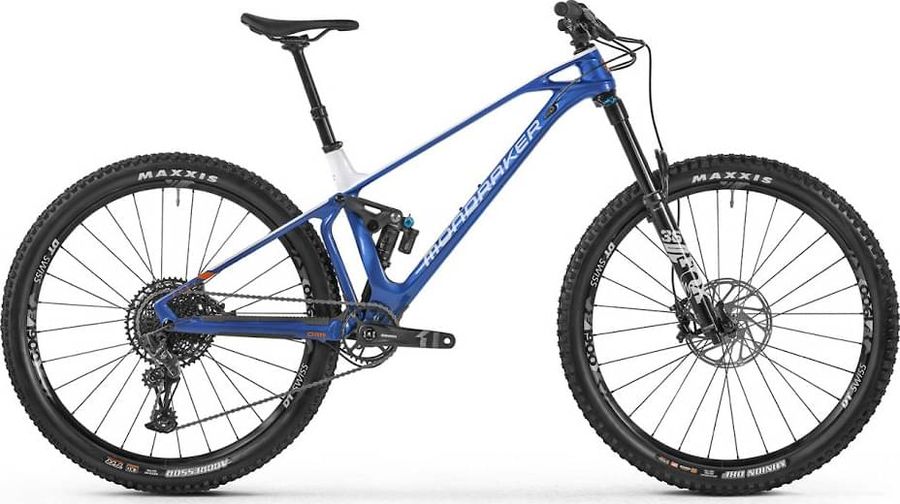

Mondraker Foxy Carbon R 2021

About the Mondraker Foxy Carbon R 2021

The Mondraker Foxy Carbon R 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,5 kg.

Features

The Mondraker Foxy Carbon R 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ONOFF Desert, 135mm length, single lock-on
Components
Steam
ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Saddle
SDG Bel-Air 3.0, LPU foam, steel rails
Headset
ONOFF Titan, ACB sealed bearings
Seatpost
ONOFF Pija dropper, Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Handlebar
ONOFF Sulfur 1.0, double butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Brake lever
SRAM G2 R, tool-free reach adjust
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM NX Eagle DUB, 170mm length (SM/MD), 175mm length (LG/XL)
Shifter
SRAM NX Eagle, 12-speed, Trigger, X-Actuation
Bottom bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss E1900 Spline, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT, Rear: Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
Spokes
DT Swiss Champion, straightpull
Rear hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver
Front hub
DT Swiss 370, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
470,0
510,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
603,0
626,0
651,0
675,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1184,0
1207,0
1233,0
1259,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
22,0
22,0
22,0
22,0
k
Stack height
602,0
611,0
625,0
639,0
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
-
-
-
-
x
Bottom bracket height
352,0
352,0
352,0
352,0
y
Front center
-
-
-
-
